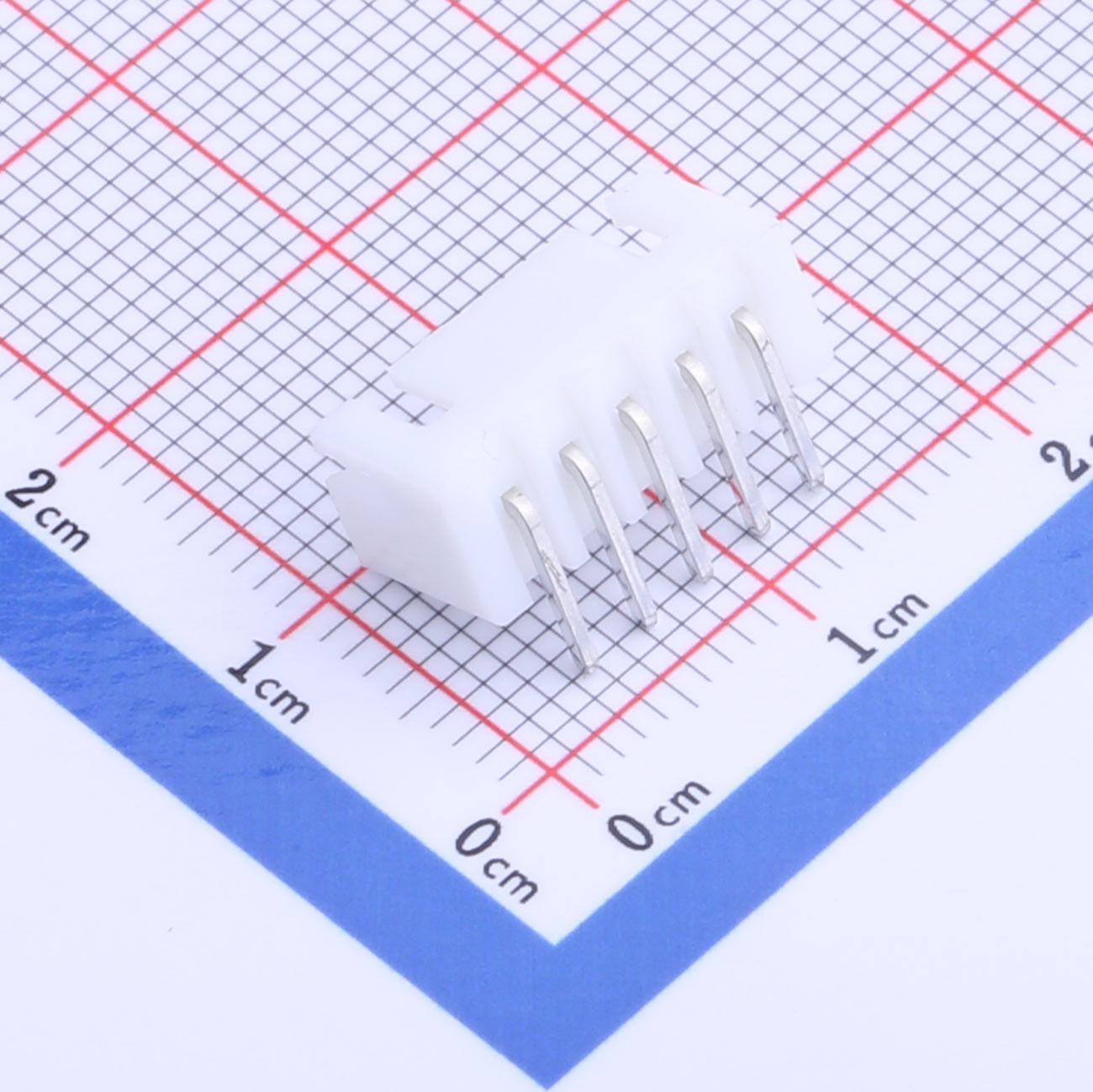

Wire to Board Connector, XH Connector, 2.5mm Pitch, 1x5P, KH-XH-5A-W

Product Features● 2.5mm pitch● 1x5P single row● Right-angle mounting type● 3A current rating● -25℃ t

Current Rating: 3A AC/DC

Voltage Rating: 250V AC/DC

Temperature Range: -25℃ to +85℃

Contact Resistance: 20mΩ Max

Insulation Resistance: 1000MΩ Min

Download Datasheet Online Consultation

Product Details Product Documents Technical Support

Product Features
● 2.5mm pitch
● 1x5P single row
● Right-angle mounting type
● 3A current rating
● -25℃ to +85℃ operating temperature
● Push-pull connection design

Product Benefits
● Stable and secure 5-pin connection
● Compact layout for tight spaces
● Easy handling with push-pull mechanism
● Withstands heat and vibration
● Streamlined assembly process

Product Applications
● Compact electronic devices
● Automotive LED modules
● Industrial I/O interfaces
● Small communication terminals
● Smart home control boards
