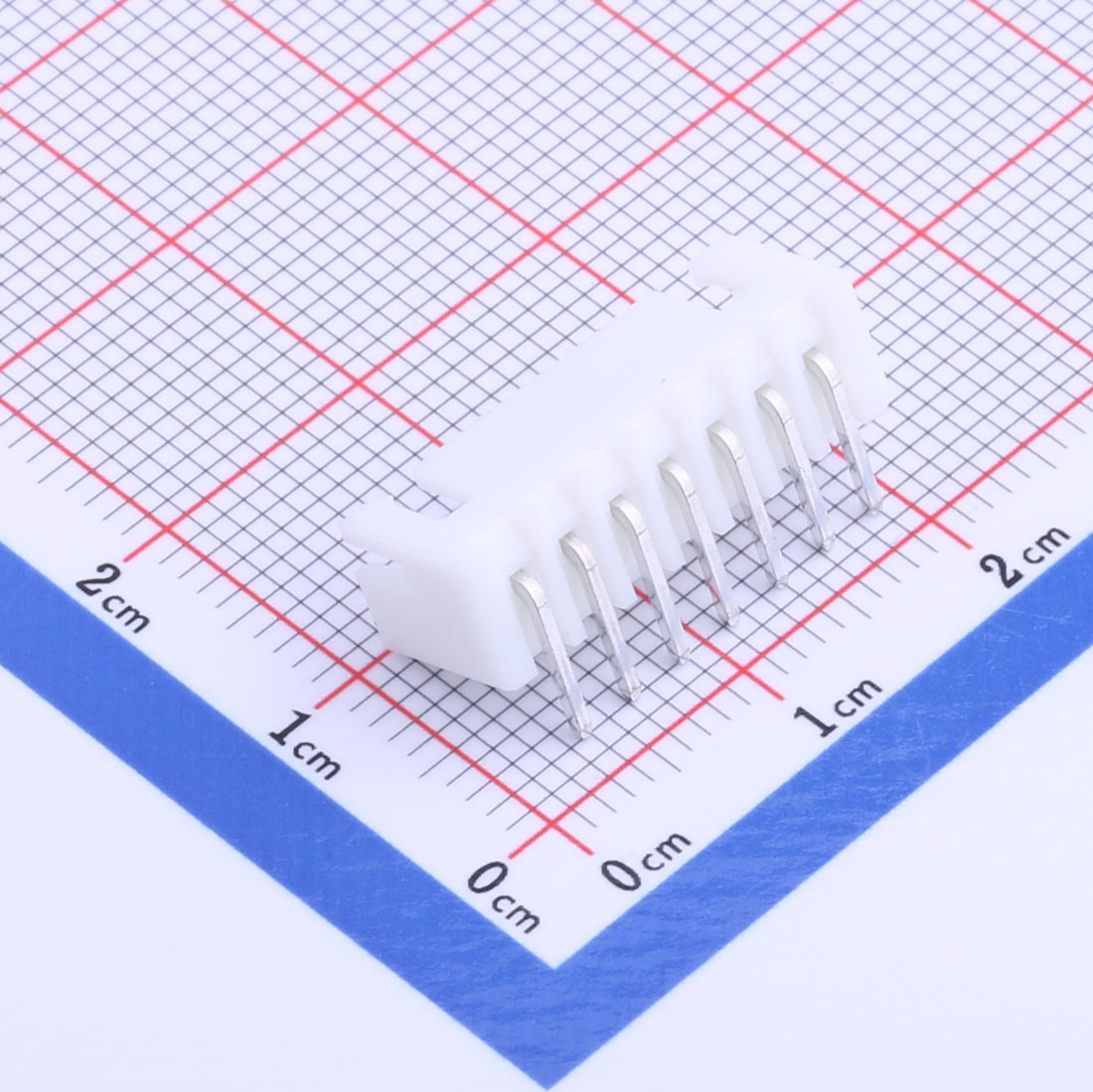

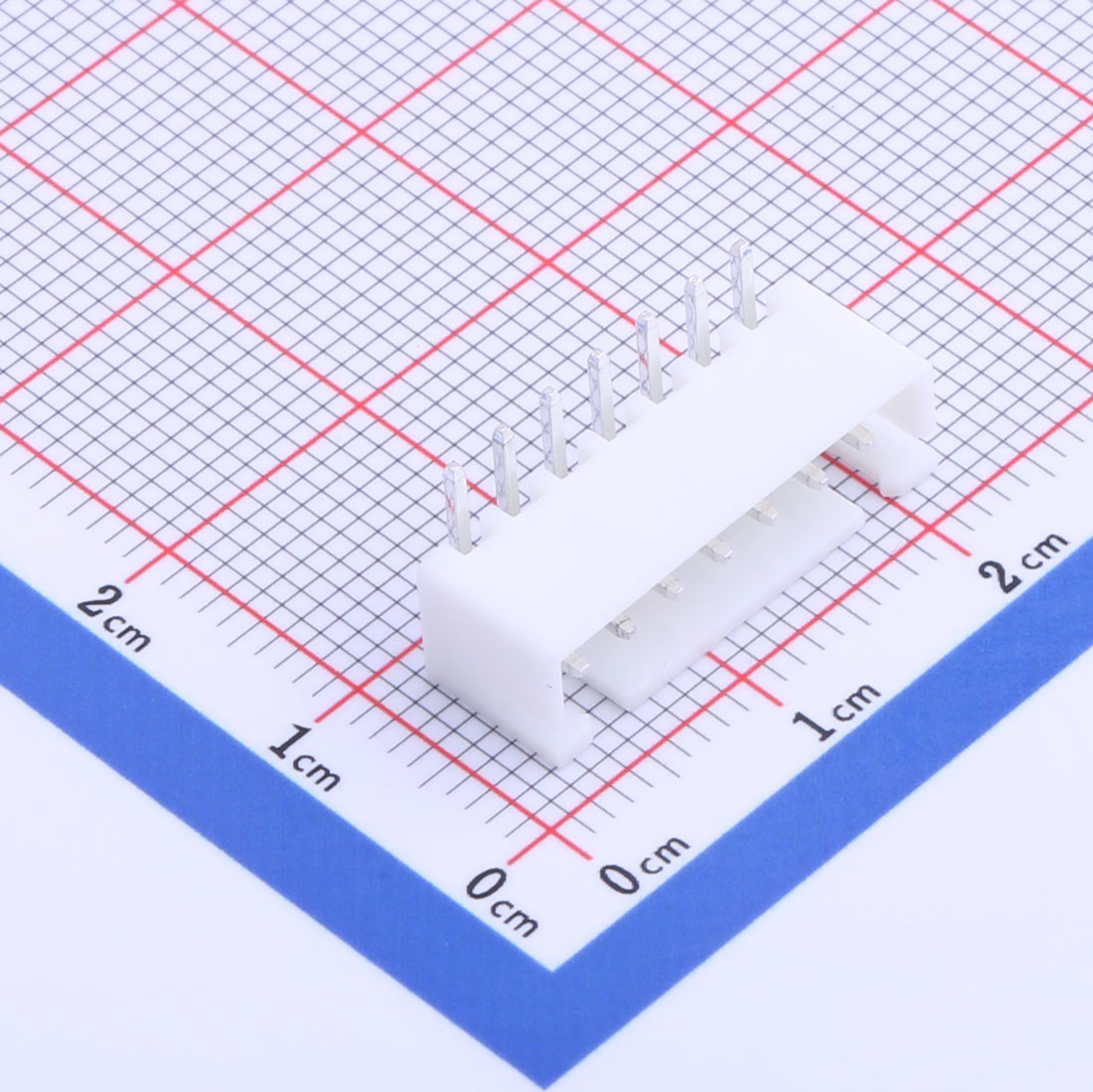

Wire to Board Connector, XH Connector, 2.5mm Pitch, 1x7P, KH-XH-7A-W

Product Features● 2.5mm pitch● 1x7P single row● Right-angle mounting type● 3A current rating● -25℃ t

Current Rating: 3A AC/DC

Voltage Rating: 250V AC/DC

Temperature Range: -25℃ to +85℃

Contact Resistance: 20mΩ Max

Insulation Resistance: 1000MΩ Min

Download Datasheet Online Consultation

Product Details Product Documents Technical Support

Product Features
● 2.5mm pitch
● 1x7P single row
● Right-angle mounting type
● 3A current rating
● -25℃ to +85℃ operating temperature
● Push-pull locking mechanism

Product Benefits
● Secure and stable connection
● Compact right-angle design saves space
● Easy plug-in and removal
● Durable against heat and vibration
● Simplifies installation and servicing

Product Applications
● Small electronic devices
● Automotive sensor units
● Industrial automation controls
● Communication modules
● Portable medical tools
