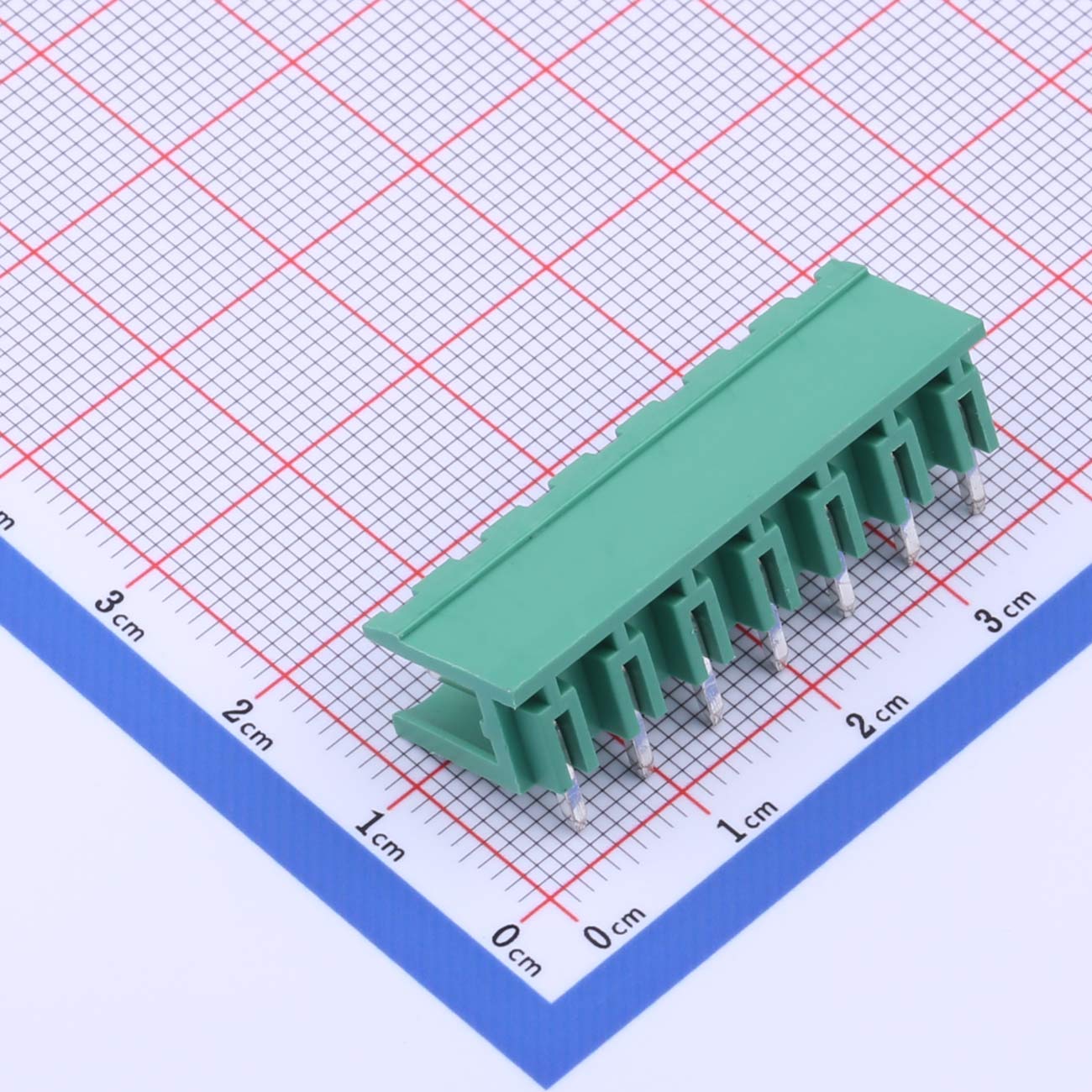

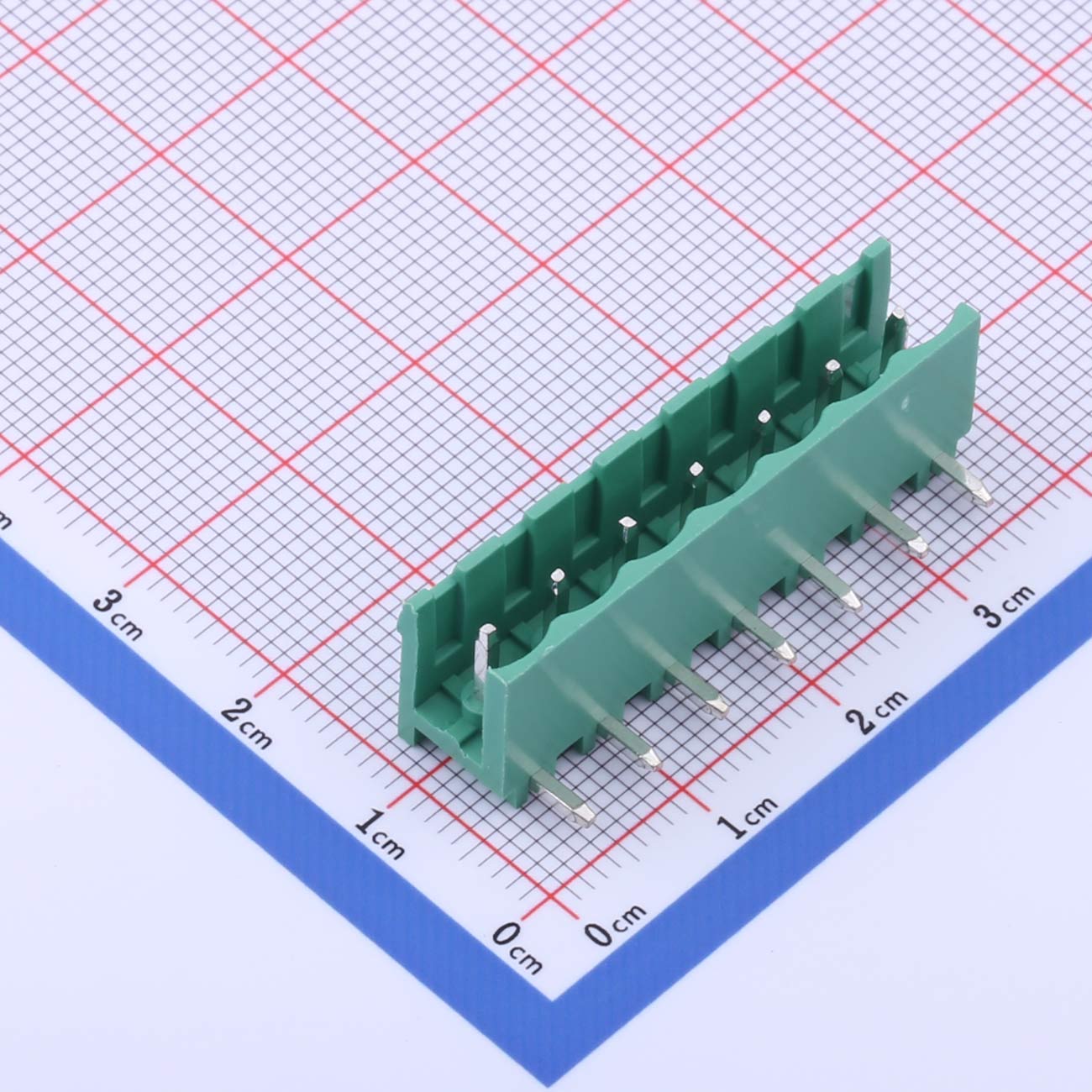

Pluggable Terminal Block, 5.08mm pitch, 7 pin, 12A 300V, KH-ZBF4000R-7P-5.08G
Product Features● Right-angle pin mounting● 5.08 mm pitch spacing● 7-pin single row configuration● B
Rated Voltage & Current: 300V, 12A (CE)
Insulation Strength: AC 2000V/min
Insulation Resistance: ≥500MΩ at DC 500V
Operating Temperature Range: -40°C to +105°C
Product Features
● Right-angle pin mounting
● 5.08 mm pitch spacing
● 7-pin single row configuration
● Board mount socket open end
● Green flame-retardant thermoplastic housing
● Rated current 12A per contact
● Rated voltage 300V
● Operating temperature -40℃ to +105℃
Product Benefits
● Versatile for medium-density applications
● Supports multi-channel power or signal distribution
● Reliable and stable connections in varying conditions
● Suitable for a wide range of electronic projects
● Simplifies interconnection in modular systems
● Enhanced design flexibility for medium-scale systems
Product Applications
● Multi-channel sensor and monitoring systems
● Automation controllers and terminals
● Power management in robotics
● Industrial control and data logging devices
● Audio-visual equipment connections
● Building and security system integration
Name
Title
Description
Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
