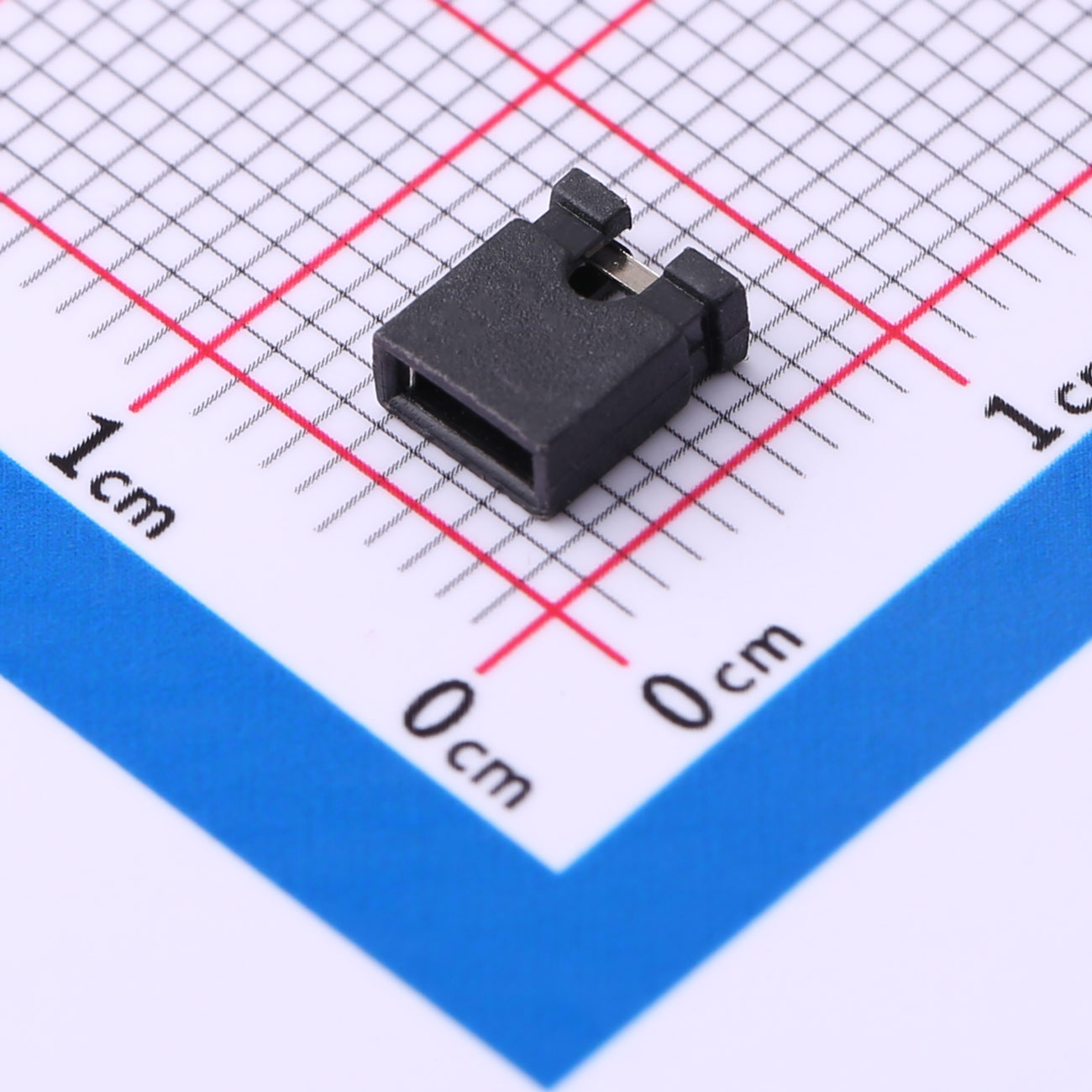

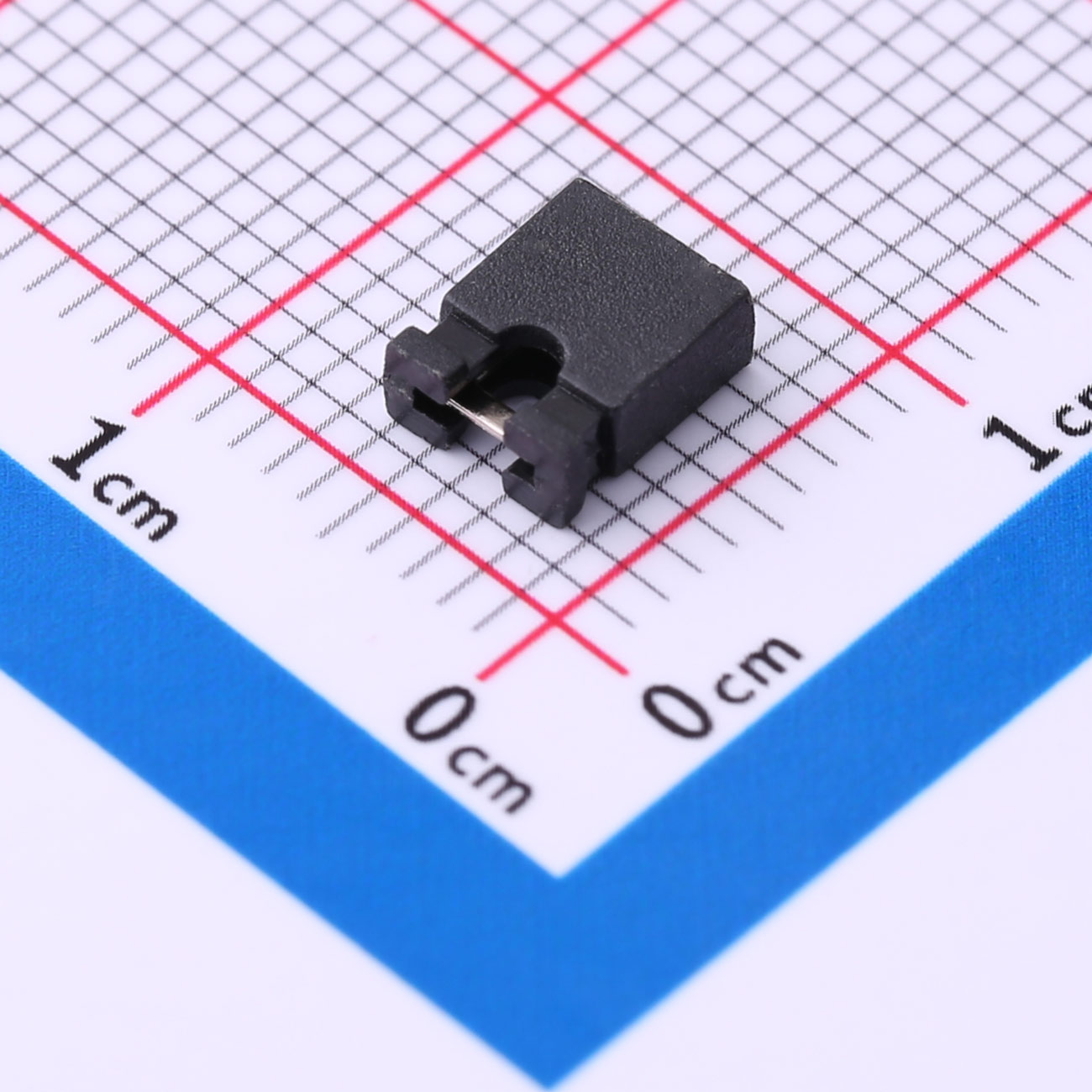

Kinghelm Short Circuit Cap/Jumper Cap--KH-2.54TXM-H6.0

Kinghelm Short Circuit Cap/Jumper Cap--KH-2.54TXM-H6.0

Current Rating: 3A

Contact Material: Phosphor Bronze

Plating: Gold or Tin over Nickel

Operating Temperature: -40°C to +105°C

Download Datasheet Online Consultation

Product Benefits
● 2.54mm pitch for easy header connection
● 3A current rating for reliable operation
● Phosphor bronze contact material for durability
● Gold or tin plating over nickel for better conductivity
● Operating temperature range -40°C to +105°C
● Open top design for quick and easy adjustments
● Versatile for a range of electronic applications

Product Application
● Jumpers for quick circuit reconfiguration
● Pin header bridging in test and development setups
● Signal routing for electronics assembly
● Used for temporary connections during prototyping
● Ideal for power and ground links in various devices
● Perfect for adjustments in industrial equipment

Name
Title
Description
-
Datasheet
Support

Support



If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.

Longevity



The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
