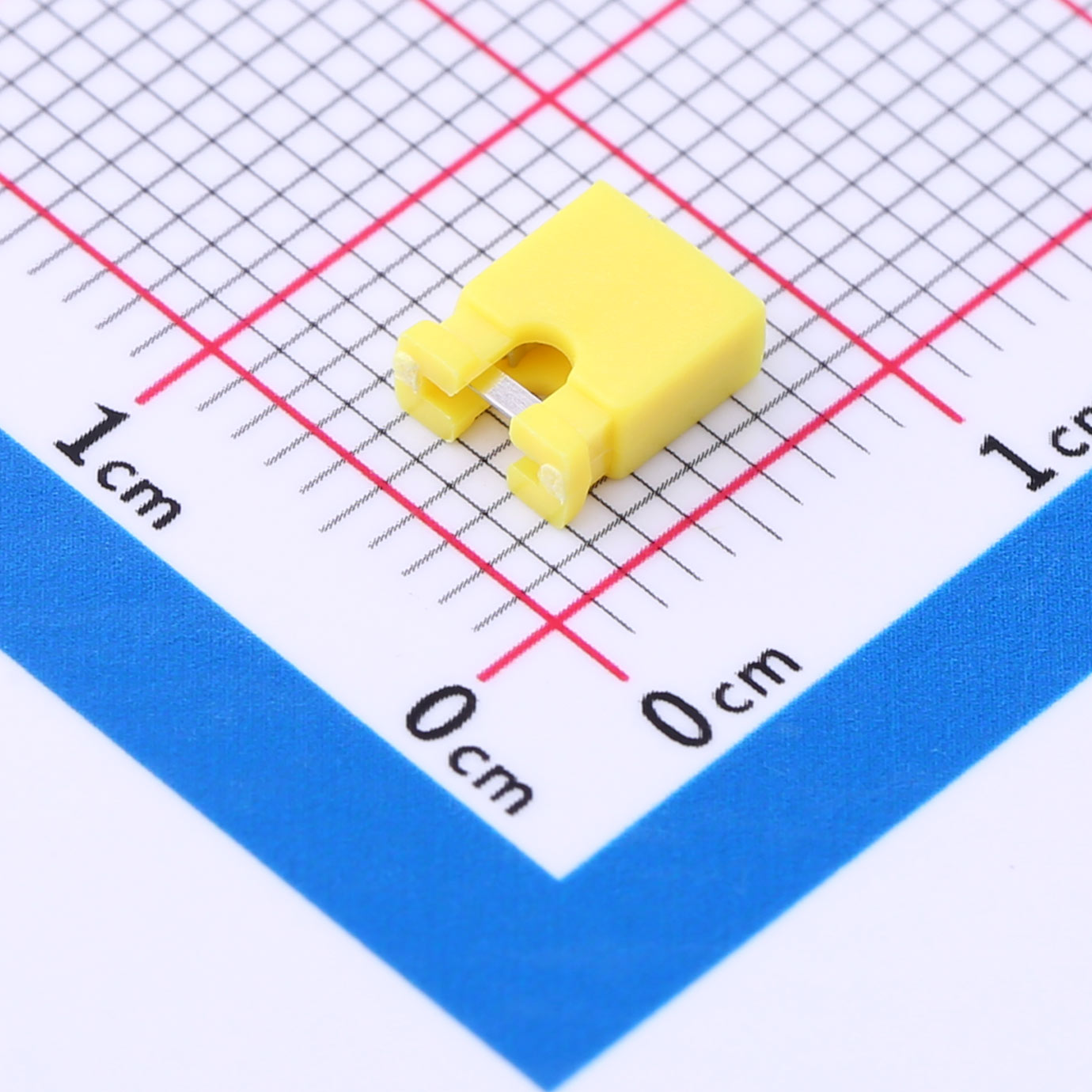

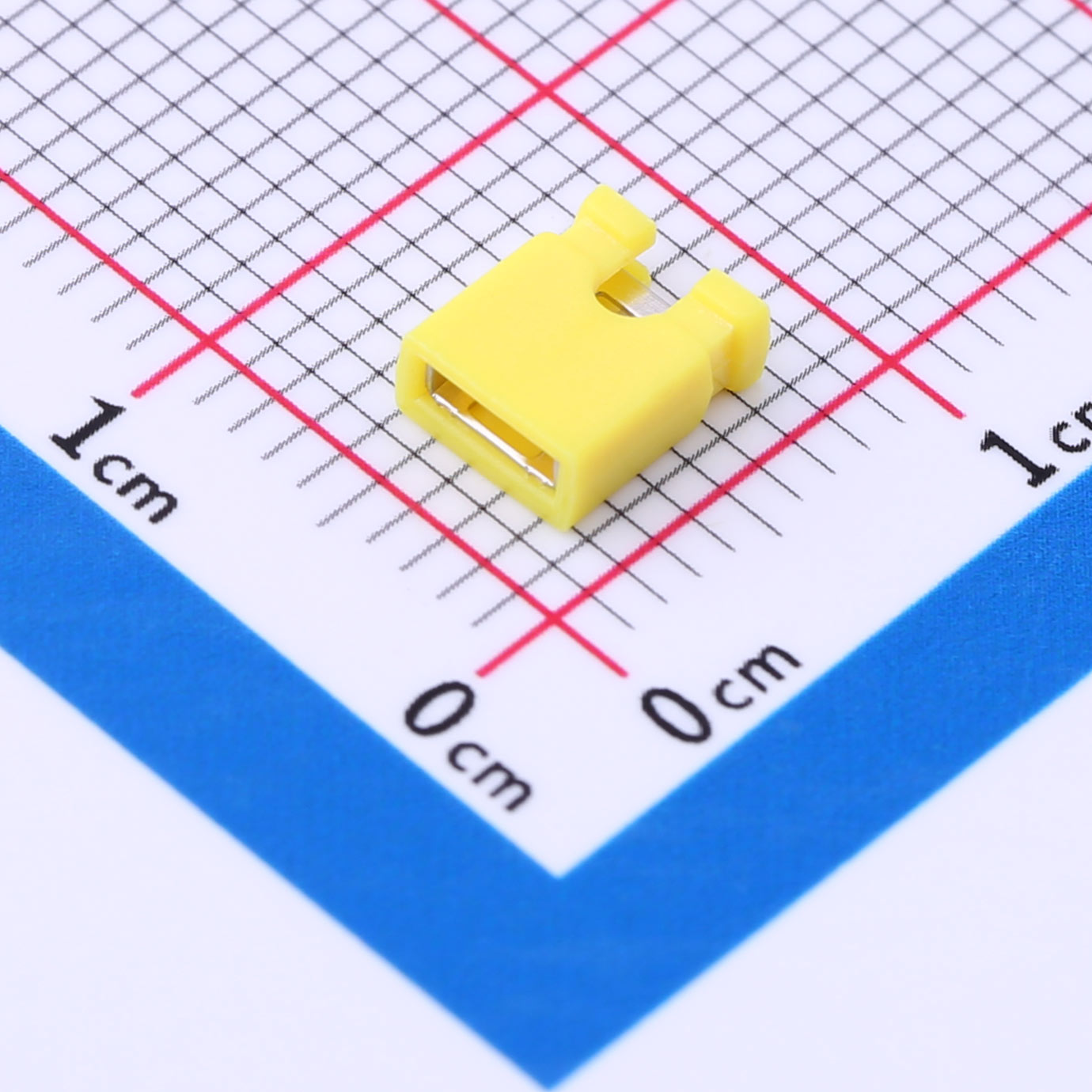

Kinghelm Short Circuit Cap/Jumper Cap--KH-2.54TXM-H6.0-Y

Kinghelm Short Circuit Cap/Jumper Cap--KH-2.54TXM-H6.0-Y

Current Rating: 3A

Contact Material: Phosphor Bronze

Plating: Gold or Tin over Nickel

Operating Temperature: -40°C to +105°C

Download Datasheet Online Consultation

Product Benefits

● 2.54mm pitch for easy header connections
● 3A current rating for reliable performance
● Phosphor bronze contact material for durability
● Gold or tin plating over nickel for better conductivity
● Operating temperature range -40°C to +105°C
● Open top design for convenient adjustments
● Yellow color for easy identification and organization

Product Application
● Signal and power jumpers for quick circuit connections
● Pin header bridging in development boards
● Circuit modifications for rapid prototyping
● Used in electronics testing and diagnostics
● Ideal for power distribution and routing in devices
● Perfect for high-speed and high-frequency applications

Name
Title
Description
-
Datasheet
Support

Support



If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.

Longevity



The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
