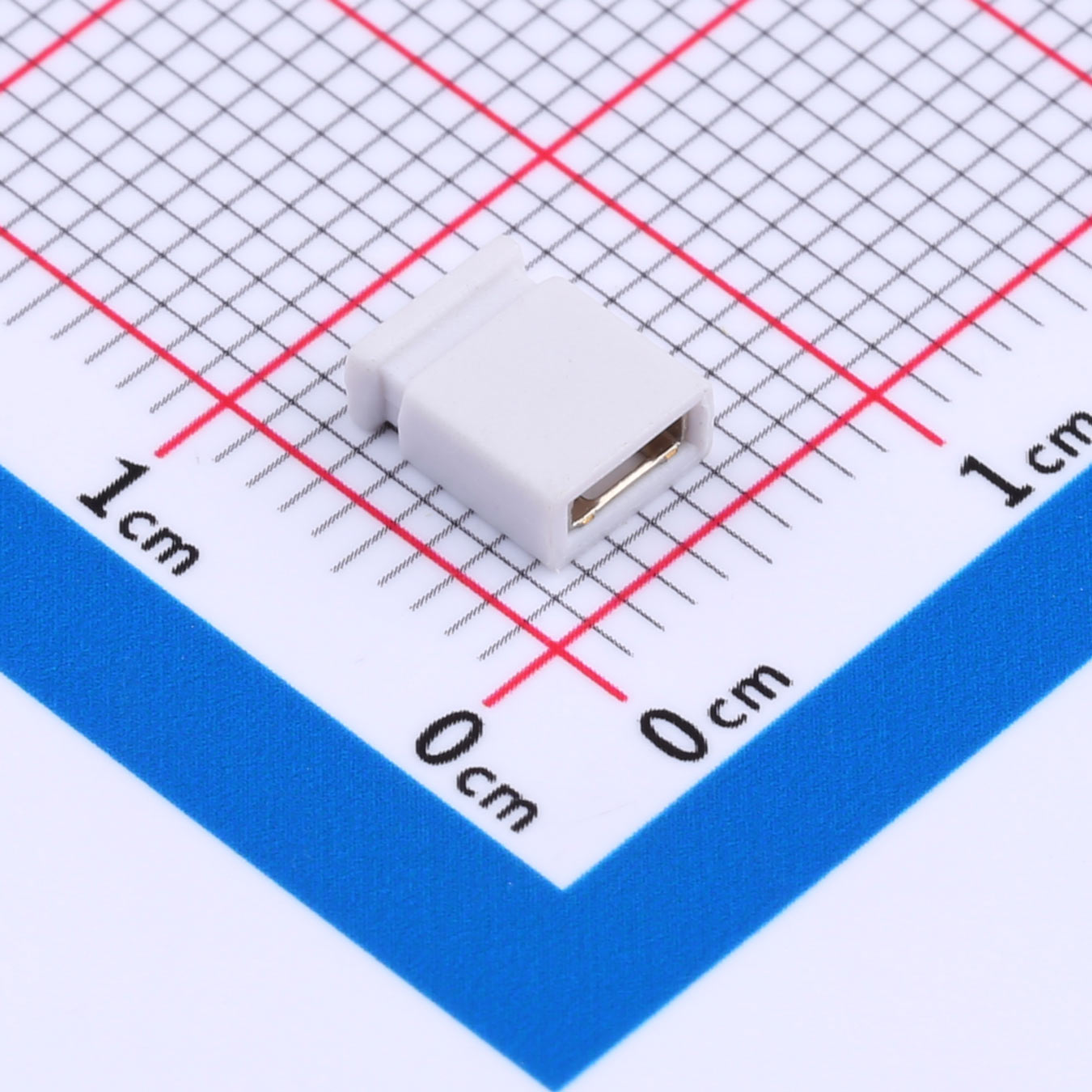

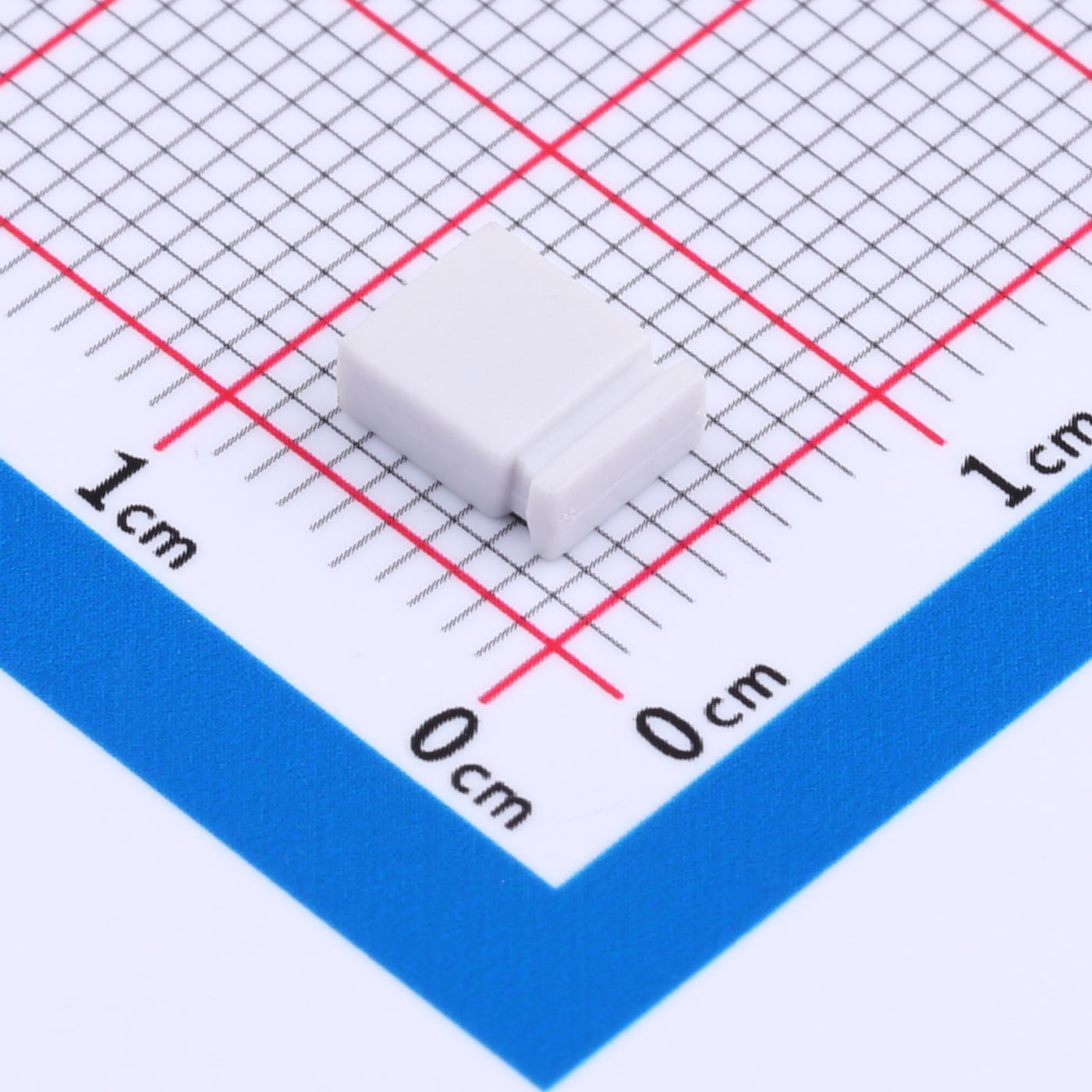

Kinghelm Short Circuit Cap/Jumper Cap--KH-2.54TXM-BK-6.5H-W

Current Rating: 3A Max

Contact Resistance: 30 mΩ Max

Insulation Resistance: 1000 MΩ Min

Dielectric Withstanding Voltage: AC 650V RMS at Sea Level

Download Datasheet Online Consultation

Product Details Product Documents Technical Support

Product Benefits
● 2.54mm pitch for standard header compatibility
● 3A max current rating for dependable performance
● Low contact resistance 30 mΩ max for efficient conductivity
● High insulation resistance 1000 MΩ minimum for safety
● AC 650V dielectric withstand voltage at sea level
● Closed top design for secure and stable connections
● Ideal for applications requiring strong electrical reliability

Product Application
● Short circuit jumpers for power and ground connections
● Signal routing for PCB configuration
● Pin header bridging in industrial control systems
● Testing and maintenance of electronic circuits
● Prototyping and development applications
● Suitable for use in consumer electronics and communication devices
