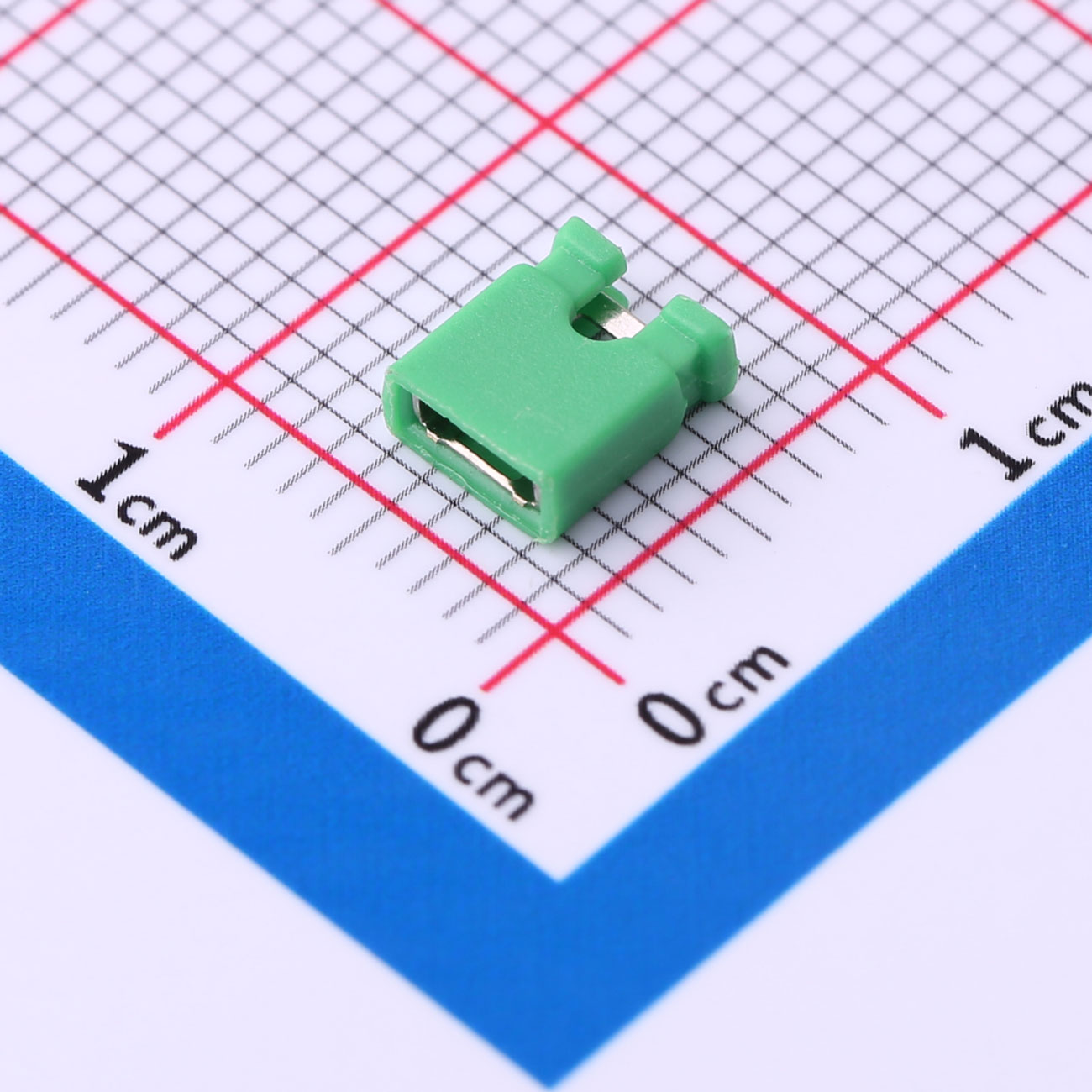

Kinghelm Short Circuit Cap/Jumper Cap--KH-2.54TXM-H6.0-G

Current Rating: 3A

Contact Material: Phosphor Bronze

Plating: Gold or Tin over Nickel

Operating Temperature: -40°C to +105°C

Download Datasheet Online Consultation

Product Details Product Documents Technical Support

Product Benefits
● 2.54mm pitch for standard connections
● 3A current rating
● Phosphor bronze contact material
● Gold or tin plating for conductivity
● Operating temp -40°C to +105°C
● Open top for easy adjustment
● Green color for easy identification

Product Application
● PCB jumper and circuit testing
● Pin header bridging
● Signal and power routing
● Prototyping and development
● Used in electronics and industrial devices
