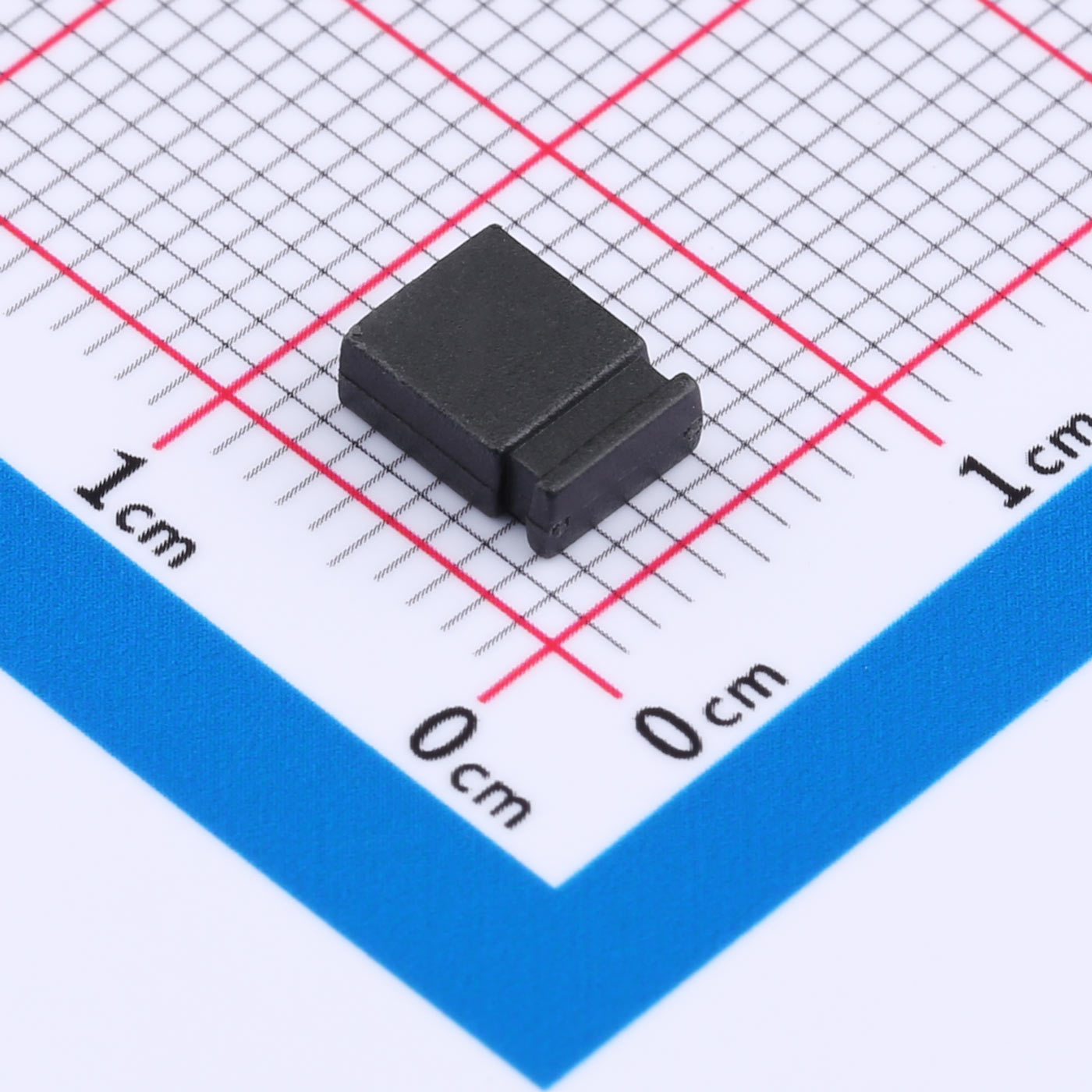

Kinghelm Short Circuit Cap/Jumper Cap--KH-2.54TXM-BK-H6.5

Current Rating: 3A Max

Contact Resistance: 30 mΩ Max

Insulation Resistance: 1000 MΩ Min

Dielectric Withstanding Voltage: AC 650V RMS at Sea Level

Download Datasheet Online Consultation

Product Details Product Documents Technical Support

Product Benefits
● 2.54mm pitch for standard connections
● 3A max current rating
● 30 mΩ max contact resistance
● 1000 MΩ min insulation resistance
● AC 650V dielectric withstand voltage
● Secure closed top design
● Compact and easy to handle

Product Application
● PCB shorting and jumper setting
● Signal and power routing
● Circuit testing and modification
● Prototyping and development
● Industrial and consumer electronics
