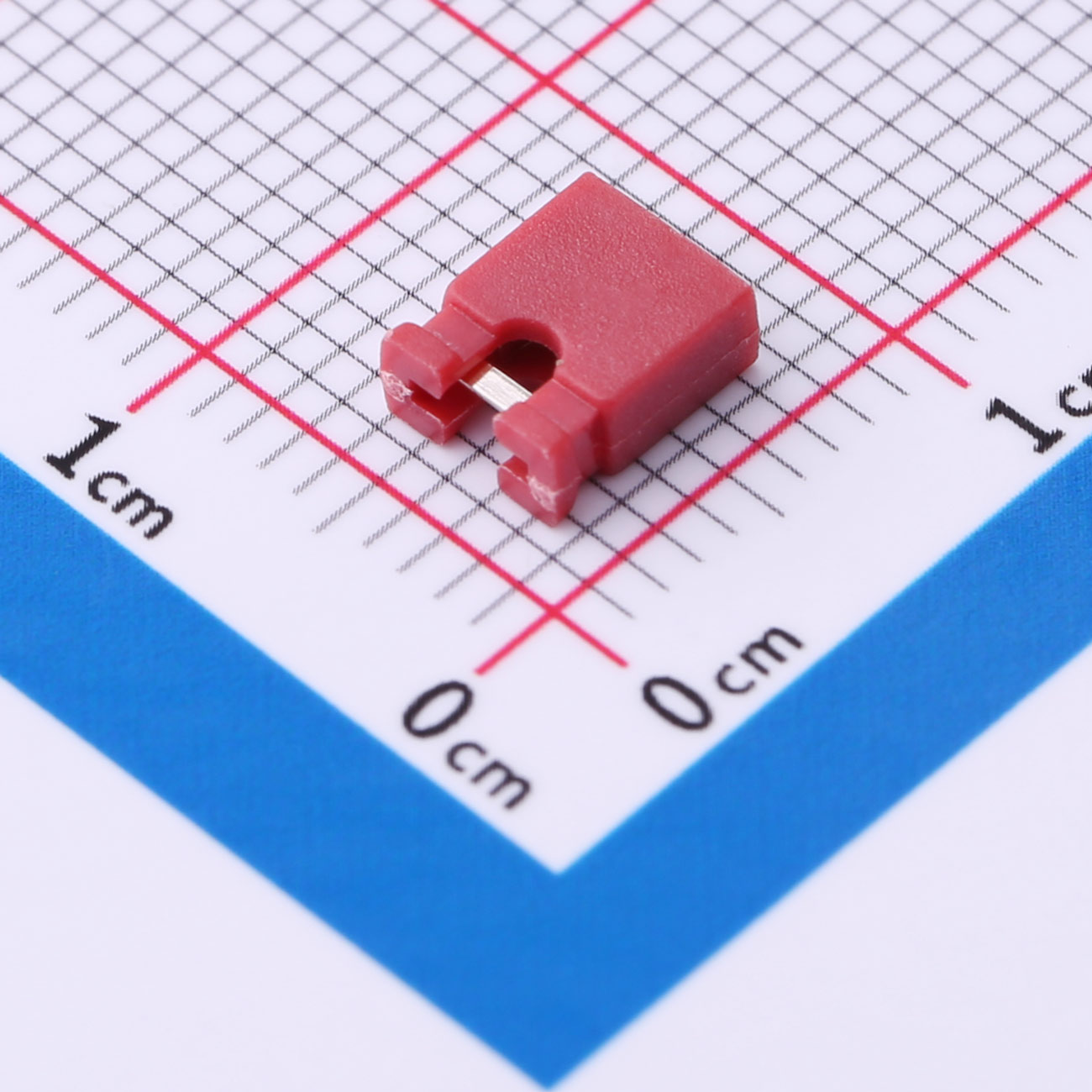

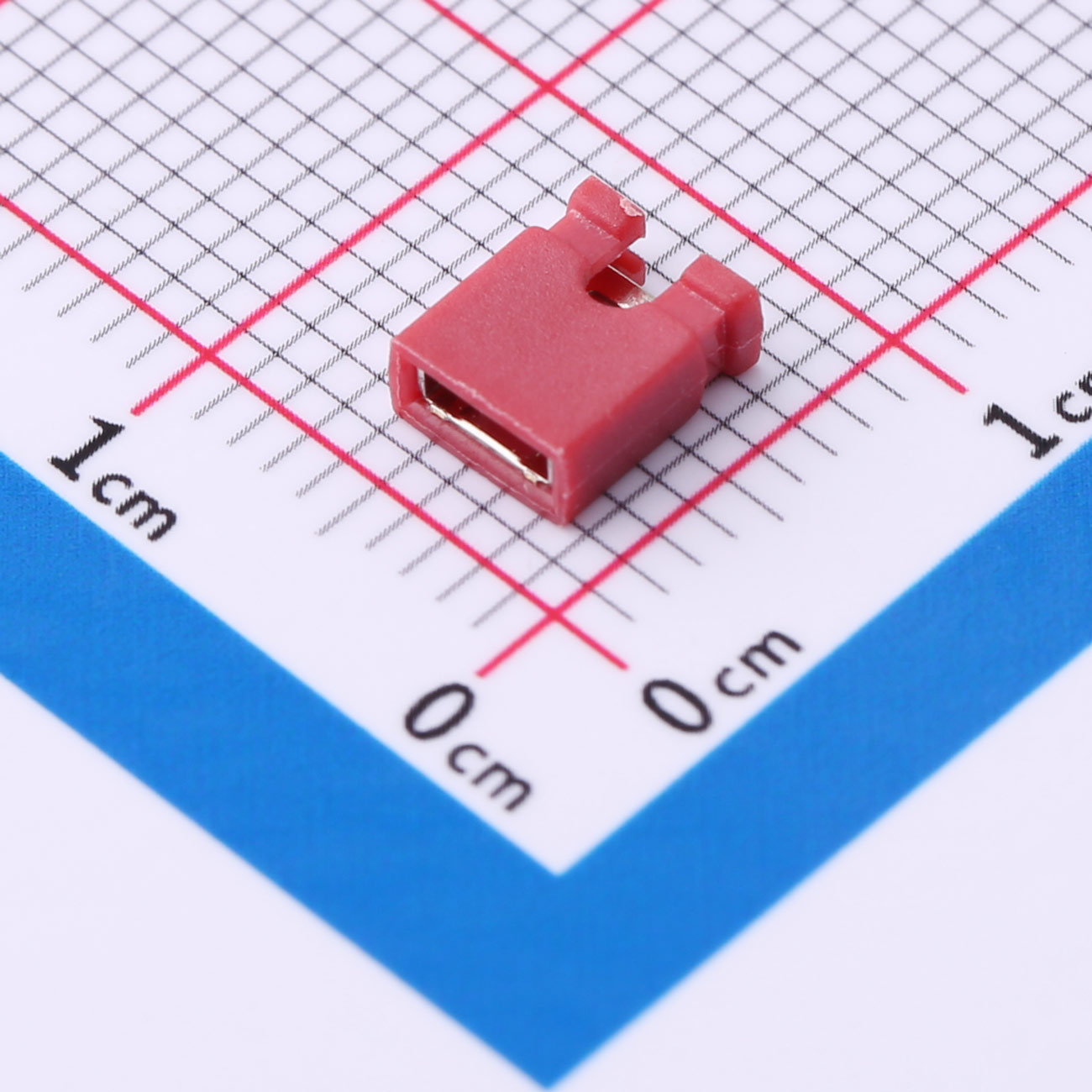

Kinghelm Short Circuit Cap/Jumper Cap--KH-2.54TXM-H6.0-R

Current Rating: 3A

Contact Material: Phosphor Bronze

Plating: Gold or Tin over Nickel

Operating Temperature: -40°C to +105°C

Download Datasheet Online Consultation

Product Details Product Documents Technical Support

Product Benefits
● 2.54mm pitch for standard header compatibility
● 3A current rating for stable performance
● Phosphor bronze contact material for reliability
● Gold or tin plating over nickel for enhanced conductivity
● Operating temperature range -40°C to +105°C
● Open top design for easy removal and insertion
● Red color for easy identification and differentiation

Product Application
● PCB shorting for fast signal routing
● Pin header bridging for circuit modifications
● Temporary connections for circuit testing
● Ideal for adjusting configurations on development boards
● Used in industrial equipment for quick setup
● Perfect for rapid prototyping and assembly
