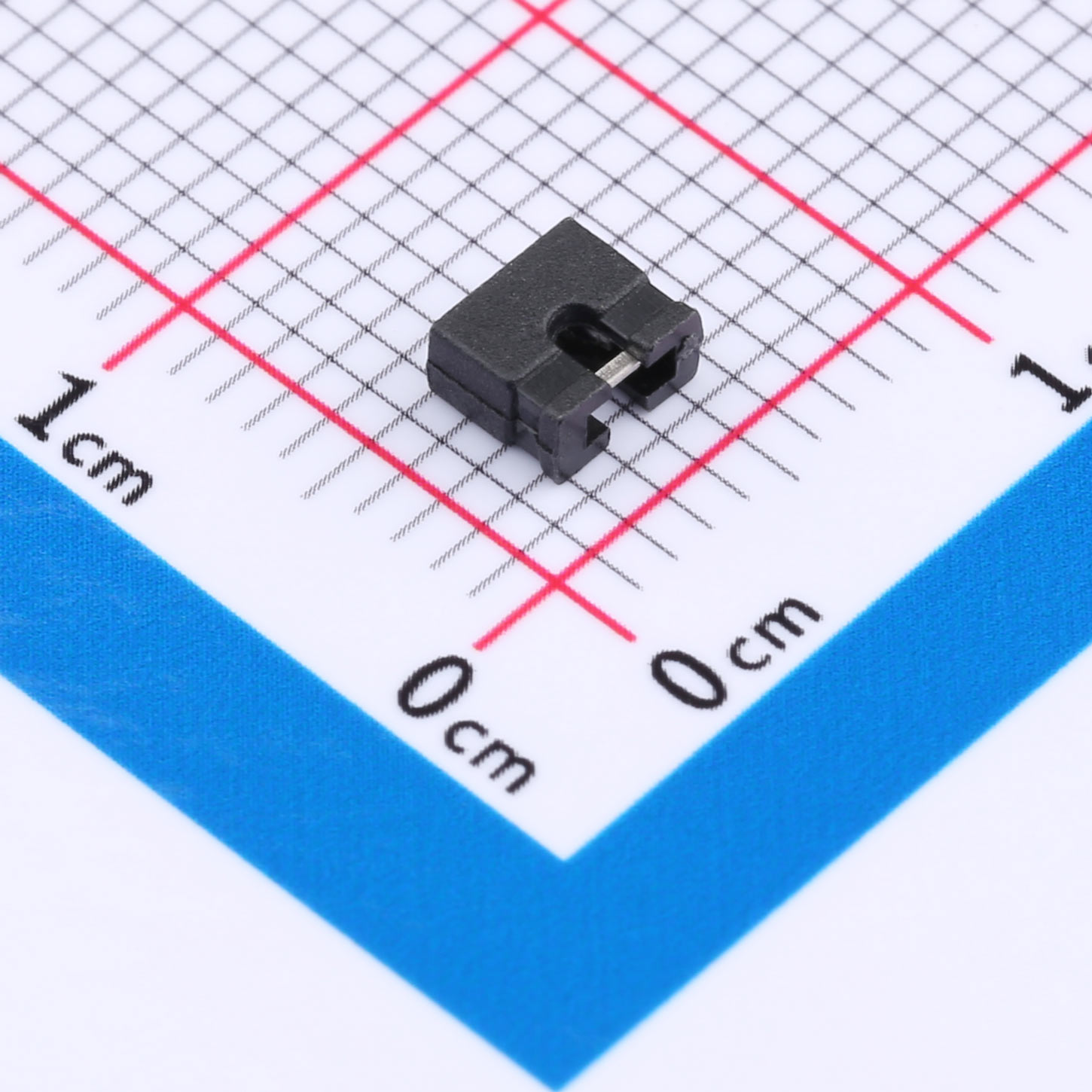

Kinghelm Short Circuit Cap/Jumper Cap--KH-2.0TXM-H3.5

Current Rating: 3A

Insulation Resistance: 5000 MΩ min

Dielectric Withstanding Voltage: AC 500V

Operating Temperature: -40°C to +105°C

Max Processing Temperature: 160°C for 30–60 seconds

Download Datasheet Online Consultation

Product Details Product Documents Technical Support

Product Benefits
● 2mm pitch for compact layout
● 3A current rating for reliable performance
● High insulation resistance 5000 MΩ minimum
● AC 500V dielectric withstand voltage for safety
● Operating temperature range -40°C to +105°C
● Max processing temperature of 160°C for brief use
● Open top design for easy removal and adjustment

Product Application
● Temporary jumper for PCB testing
● Signal and power routing on development boards
● Configuration and adjustment of pin headers
● Quick connection in assembly and maintenance
● Used in industrial automation and control systems
● Ideal for use in telecom and data equipment
