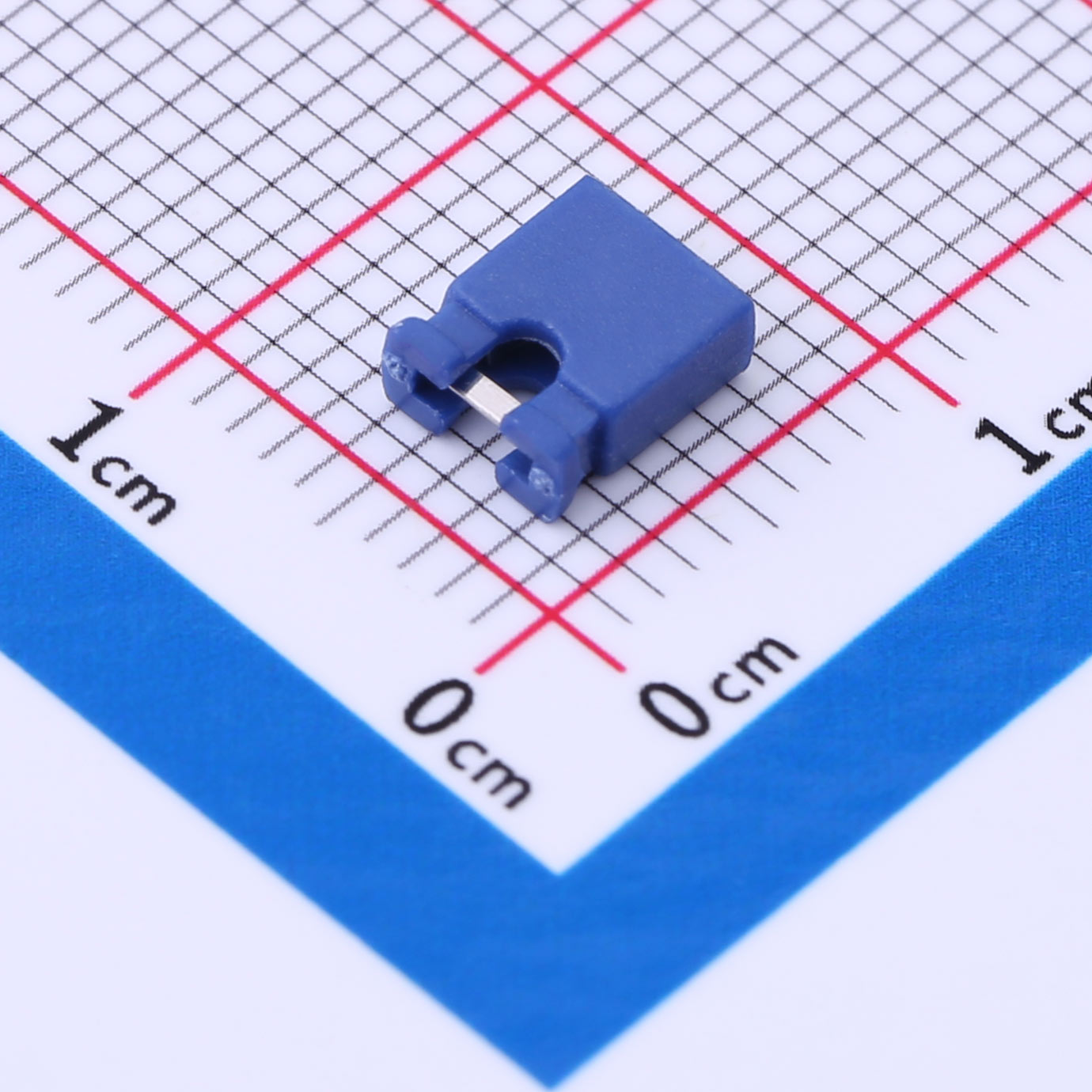

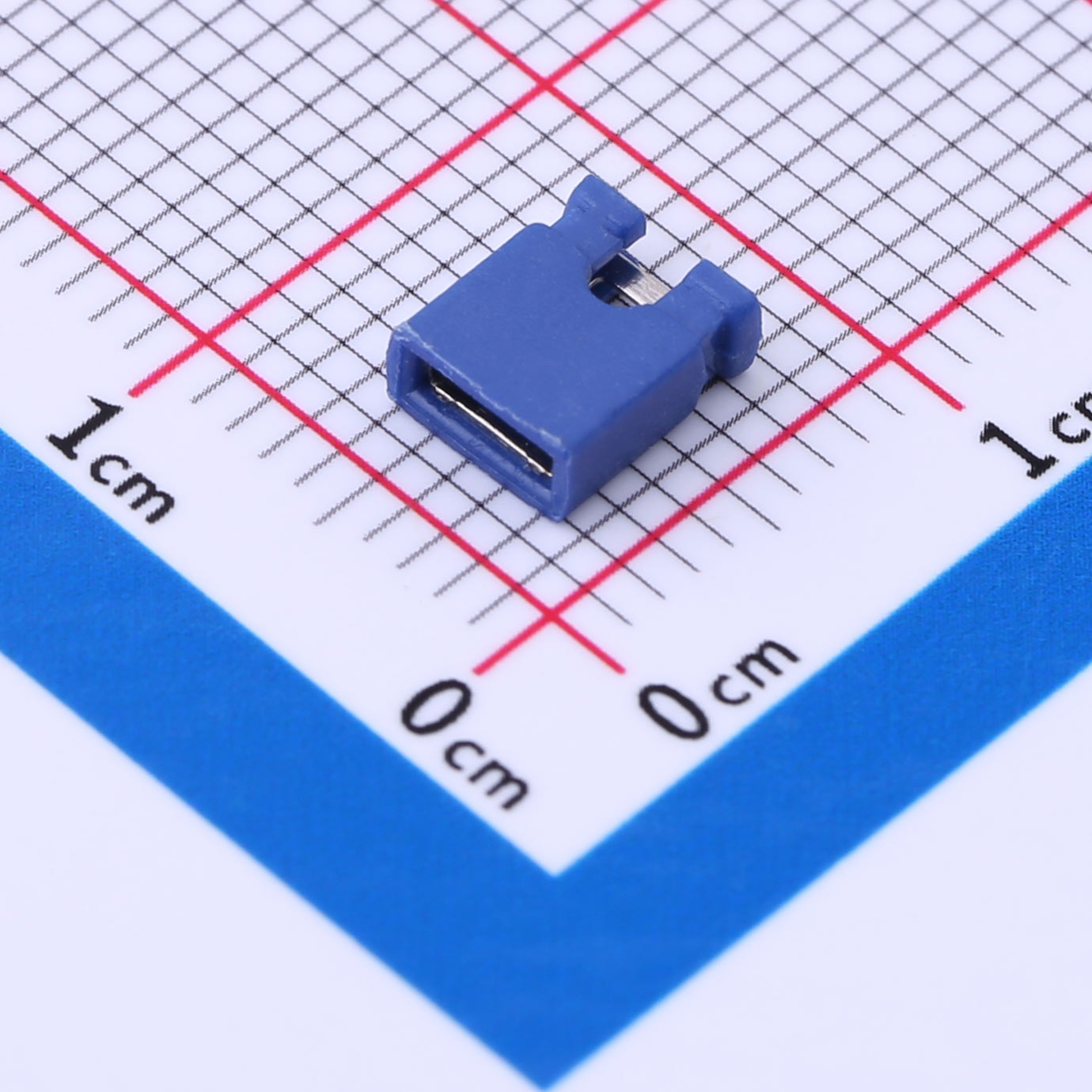

Kinghelm Short Circuit Cap/Jumper Cap--KH-2.54TXM-H6.0-B

Kinghelm Short Circuit Cap/Jumper Cap--KH-2.54TXM-H6.0-B

Current Rating: 3A

Contact Material: Phosphor Bronze

Plating: Gold or Tin over Nickel

Operating Temperature: -40°C to +105°C

Download Datasheet Online Consultation

Product Benefits
● 2.54mm pitch for standard header compatibility
● 3A current rating for reliable operation
● Phosphor bronze contact material for durability
● Gold or tin plating over nickel for improved conductivity
● Operating temperature range -40°C to +105°C
● Open top design for easy removal and modification

Product Application
● Short circuit jumper for quick signal testing
● Pin header bridging for circuit configuration
● Power distribution in electronic assemblies
● Ideal for connecting or modifying circuits on PCBs
● Used in industrial applications for fast adjustments
● Perfect for prototyping and development projects

Name
Title
Description
-
Datasheet
Support

Support



If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.

Longevity



The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
