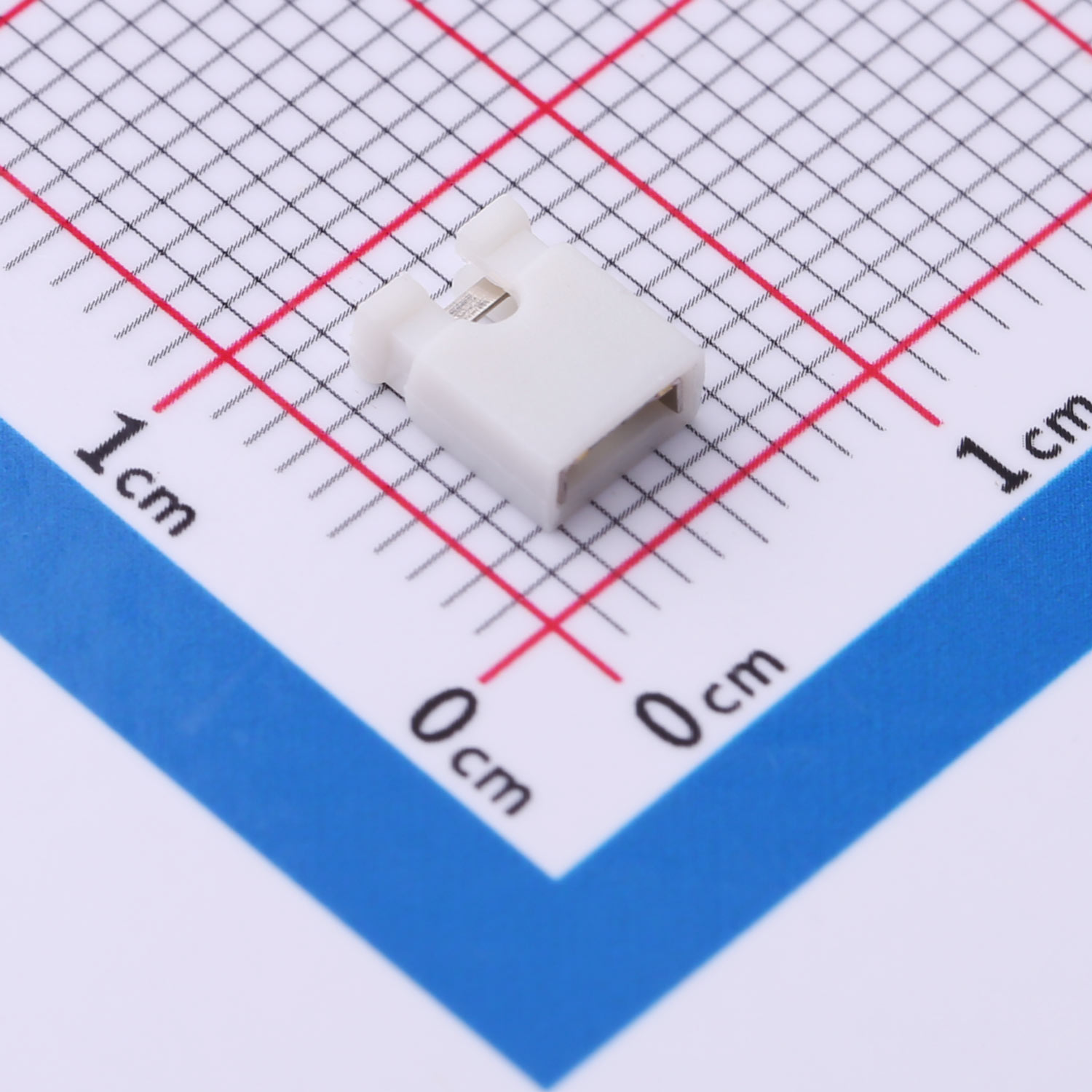

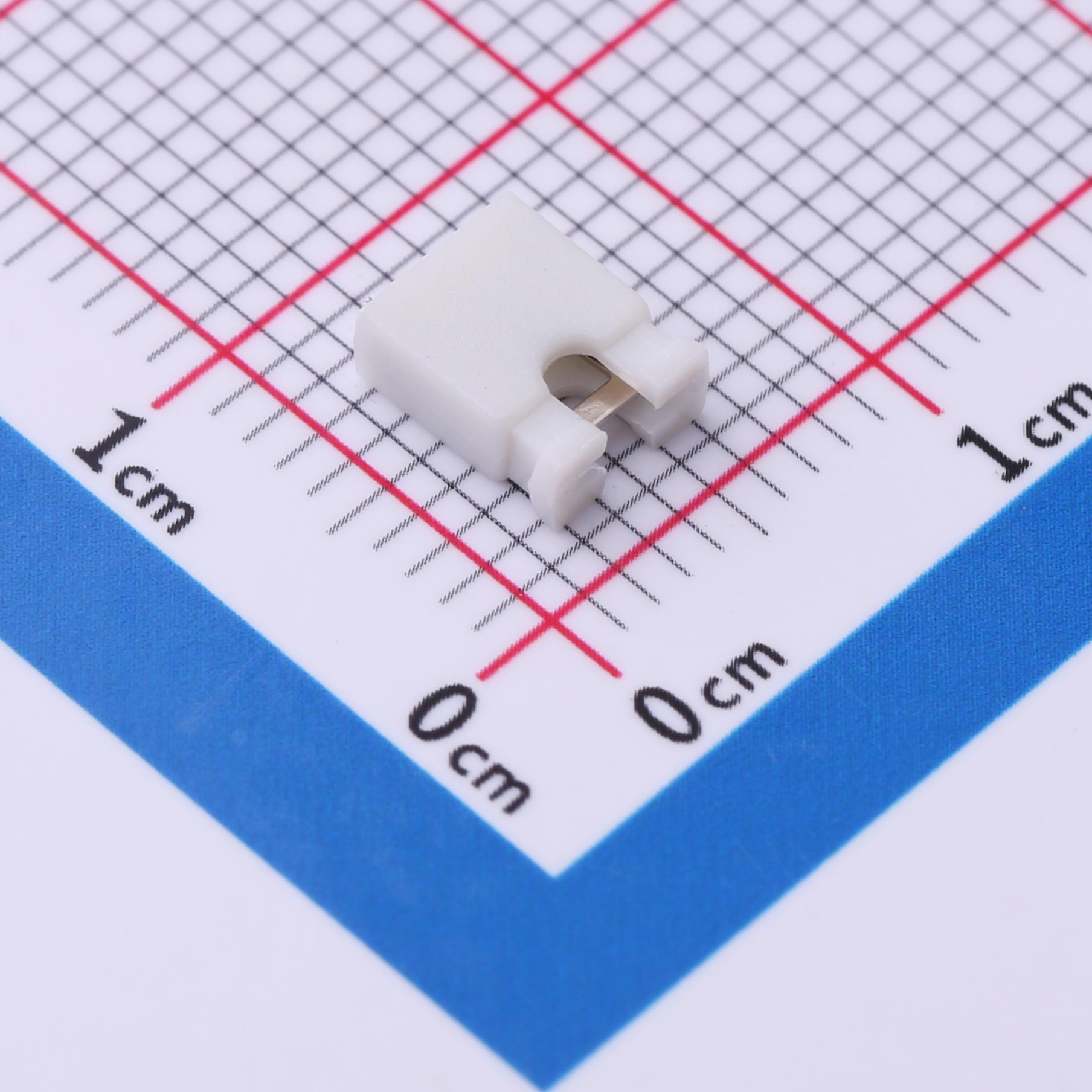

Kinghelm Short Circuit Cap/Jumper Cap--KH-2.54TXM-H6.0-W

Current Rating: 3A

Contact Material: Phosphor Bronze

Plating: Gold or Tin over Nickel

Operating Temperature: -40°C to +105°C

Download Datasheet Online Consultation

Product Details Product Documents Technical Support

Product Benefits
● 2.54mm pitch for reliable connection
● 3A current rating for consistent performance
● Phosphor bronze contacts for high durability
● Gold or tin plating over nickel for better conductivity
● Operating temperature range -40°C to +105°C
● Open top design for easy removal and adjustment
● White color for clear identification

Product Application
● Signal and power jumpers for circuit bridging
● Pin header connections in electronic assemblies
● Quick adjustments for development boards
● Ideal for testing and troubleshooting electronics
● Used in industrial and consumer electronics
● Prototyping and customization of electronic circuits
