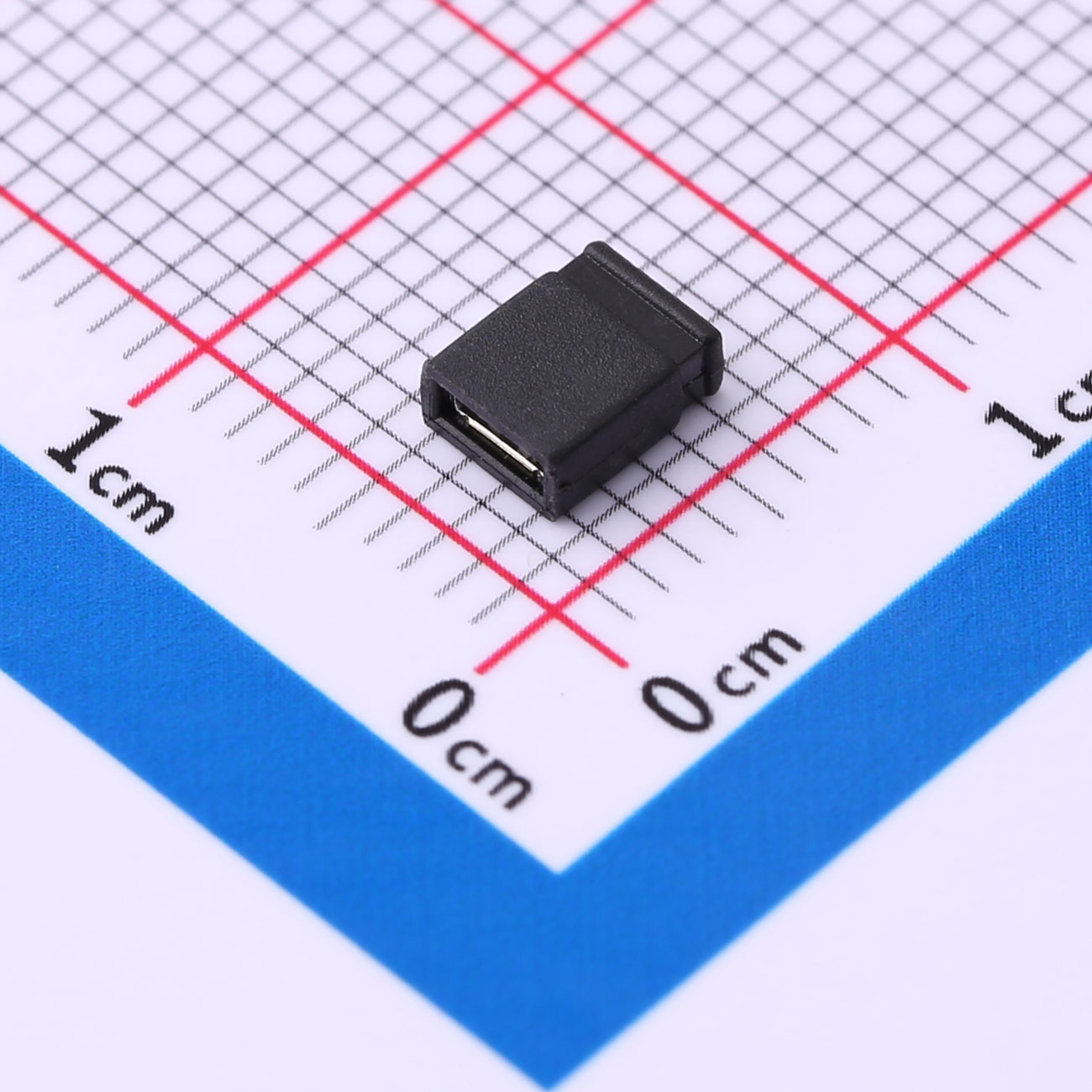

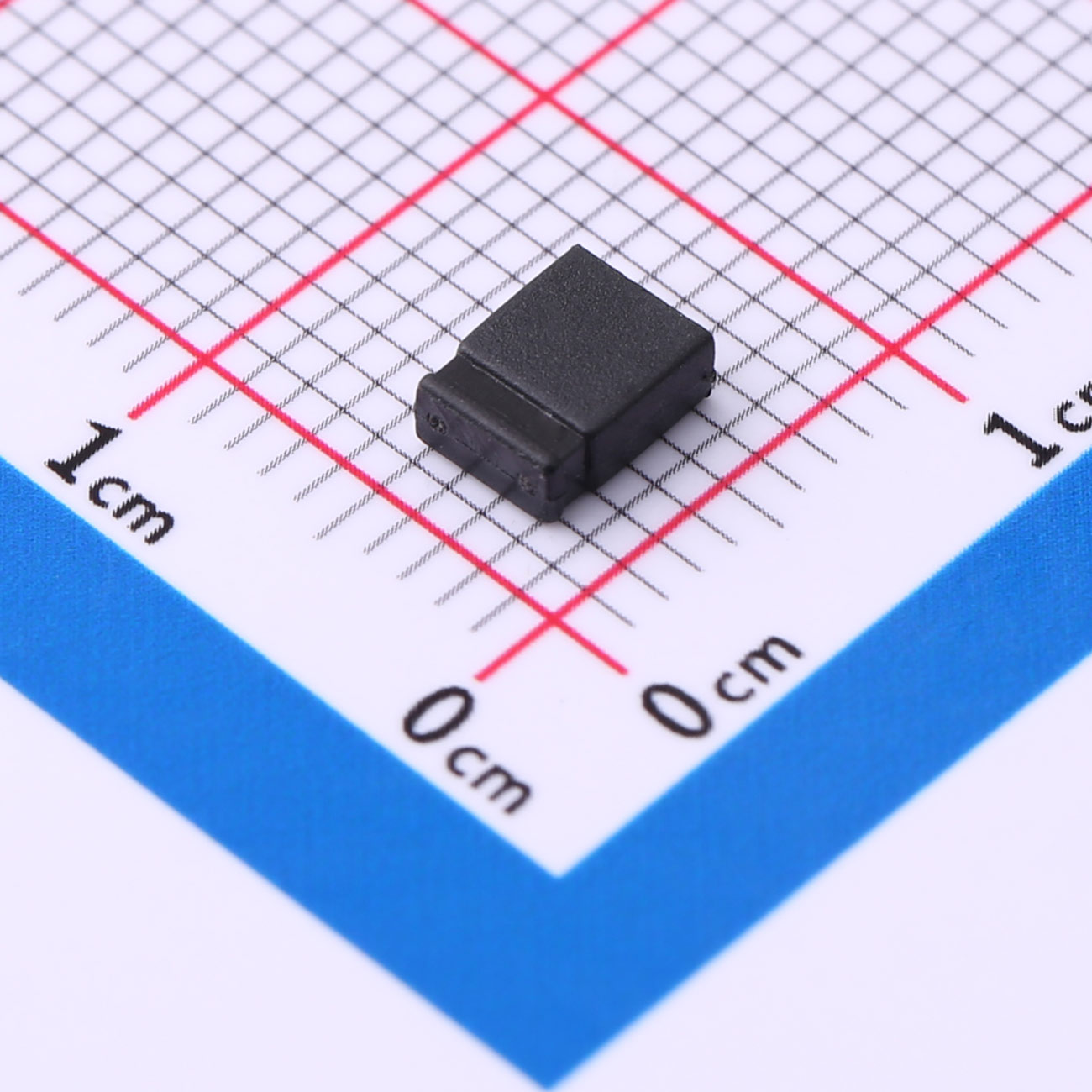

Kinghelm Short Circuit Cap/Jumper Cap--KH-2.0TXM-BK-H5.0
Kinghelm Short Circuit Cap/Jumper Cap--KH-2.0TXM-BK-H5.0
Current Rating: 3A
Insulation Resistance: 5000 MΩ min
Dielectric Withstanding Voltage: AC 500V
Operating Temperature: -40°C to +105°C
Max Processing Temperature: 160°C for 30–60 seconds
Product Benefits
● 2mm pitch for precise connection
● 3A current rating for stable operation
● High insulation resistance 5000 MΩ minimum
● AC 500V dielectric withstand voltage for safety
● Wide temperature range -40°C to +105°C
● Max processing temperature of 160°C for short durations
● Closed top design ensures secure contact
Product Application
● Short circuit jumper for PCB connections
● Used for pin header bridging and signal routing
● Power and ground circuit testing
● Electronics repair and maintenance
● Industrial control systems
● Development and prototype applications
Name
Title
Description
Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
