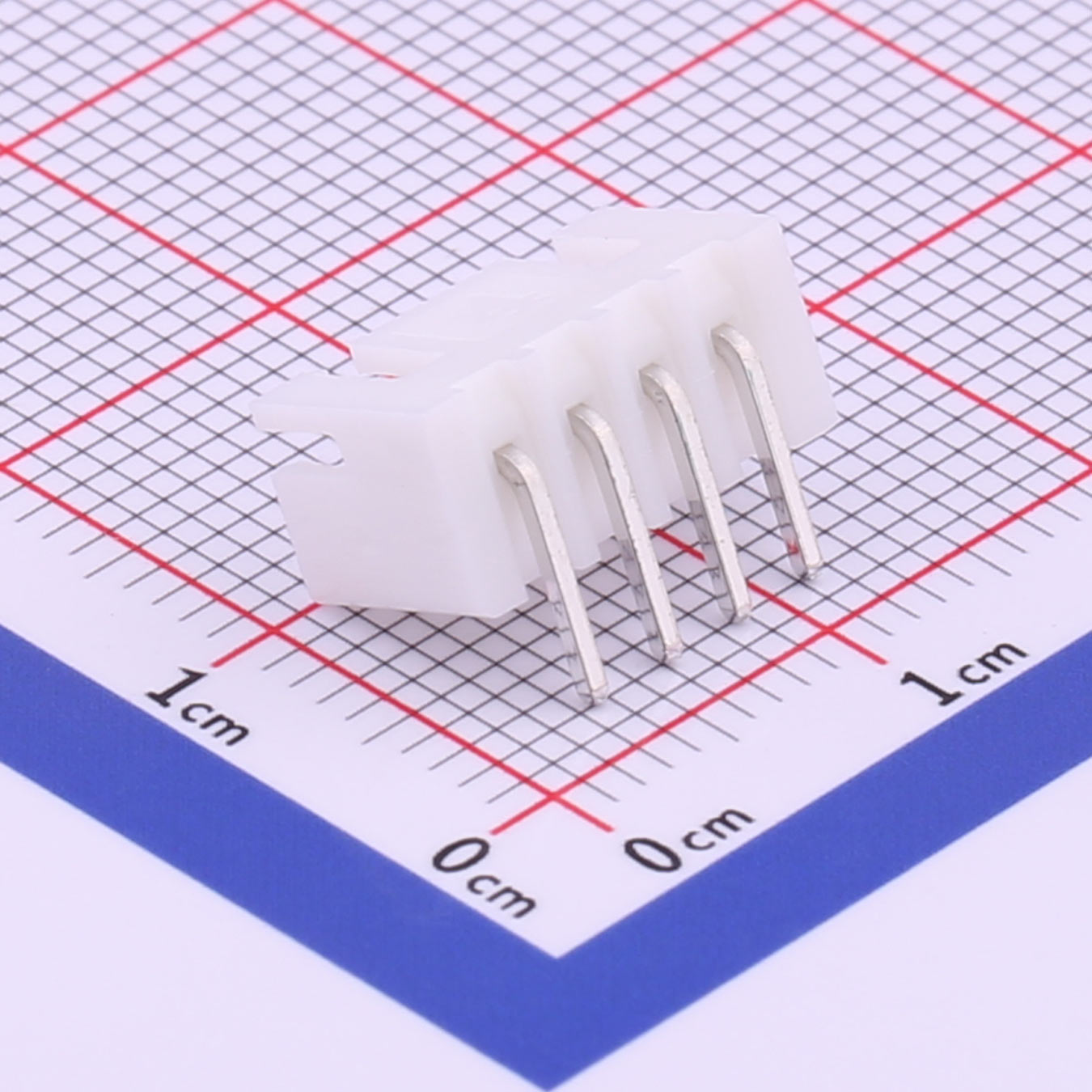

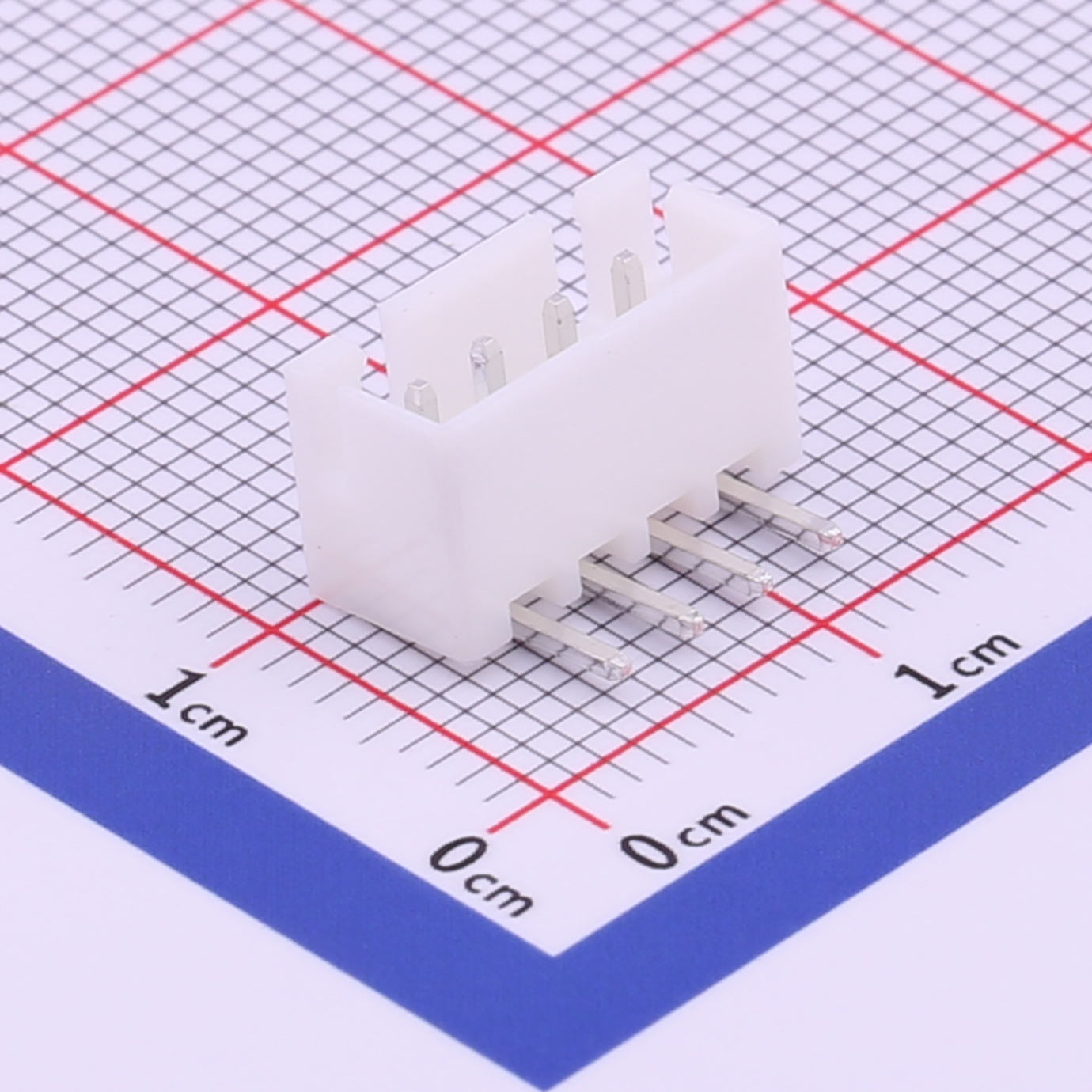

Wire to Board Connector, XH Connector, 2.5mm Pitch, 1x4P, KH-XH-4A-W
Product Features● 2.5mm pitch● 1x4P single row● Right-angle mounting type● 3A current rating● -25℃ t
Current Rating: 3A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: -25℃ to +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min
Product Features
● 2.5mm pitch
● 1x4P single row
● Right-angle mounting type
● 3A current rating
● -25℃ to +85℃ operating temperature
● Push-pull connector design
Product Benefits
● Secure 4-pin connection
● Space-efficient right-angle layout
● Easy and quick assembly
● Reliable under heat and vibration
● Simplifies wiring in compact devices
Product Applications
● Smart switches
● Automotive light modules
● Industrial control buttons
● Small communication adapters
● Kitchen appliances
