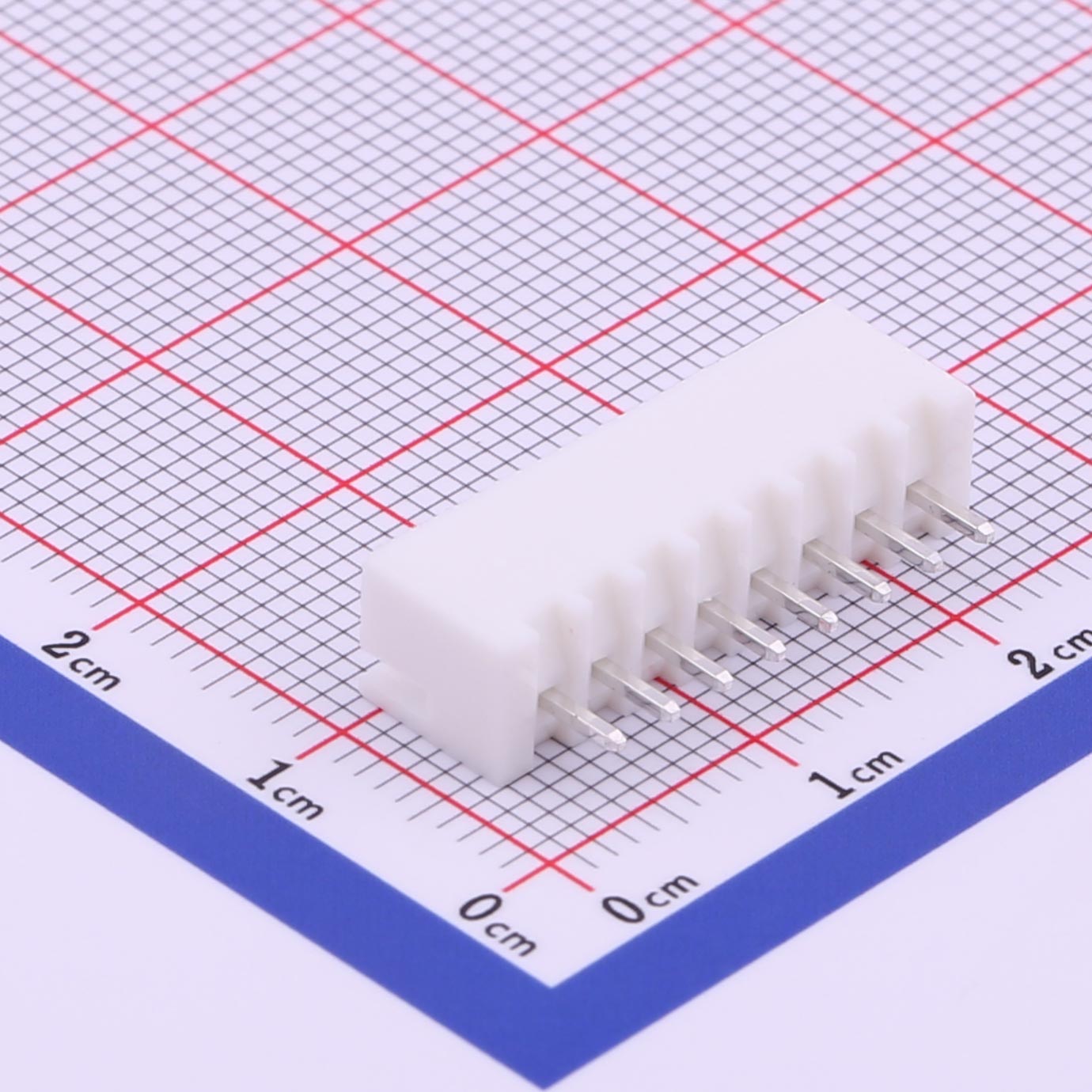

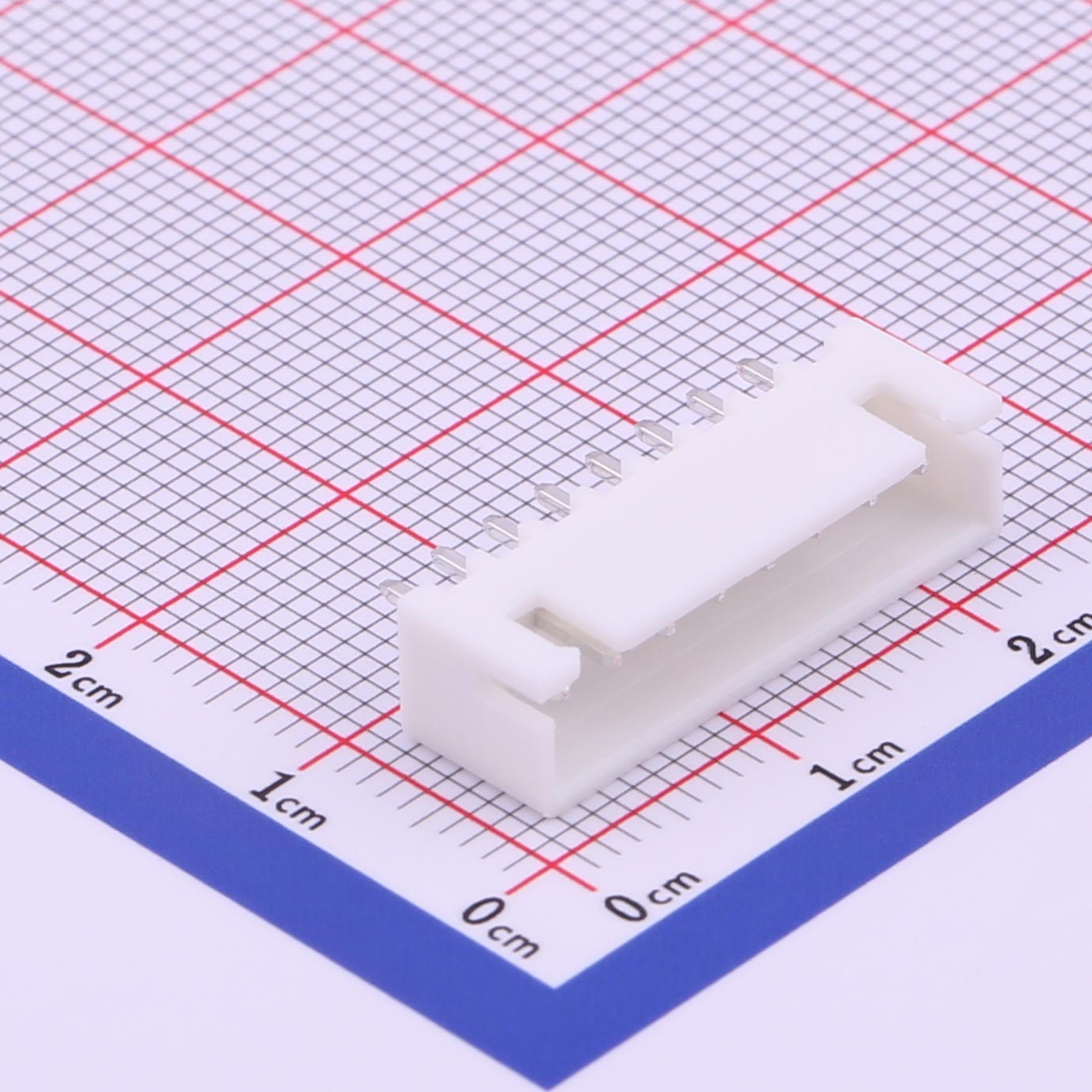

Wire to Board Connector, XH Connector, 2.5mm Pitch, 1x8P, KH-XH-8A-Z
Product Features● 2.5mm pitch● 1x8P single row● Straight mounting type● 3A current rating● -25℃ to +
Current Rating: 3A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: -25℃ to +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min
Product Features
● 2.5mm pitch
● 1x8P single row
● Straight mounting type
● 3A current rating
● -25℃ to +85℃ operating temperature
Product Benefits
● Stable and compact connection
● Optimized for 8-pin signal/power lines
● Easy PCB mounting
● Heat- and vibration-resistant
● Fast plug-in design
Product Applications
● Small consumer devices: handheld consoles, remote controls, wearables
● Automotive: sensor modules, LED lighting systems
● Industrial: control panels, compact sensors
● Communication: small routers, terminal units
● Medical: portable diagnostic tools, wearable monitors
● Home appliances: coffee makers, air purifiers, smart switches
