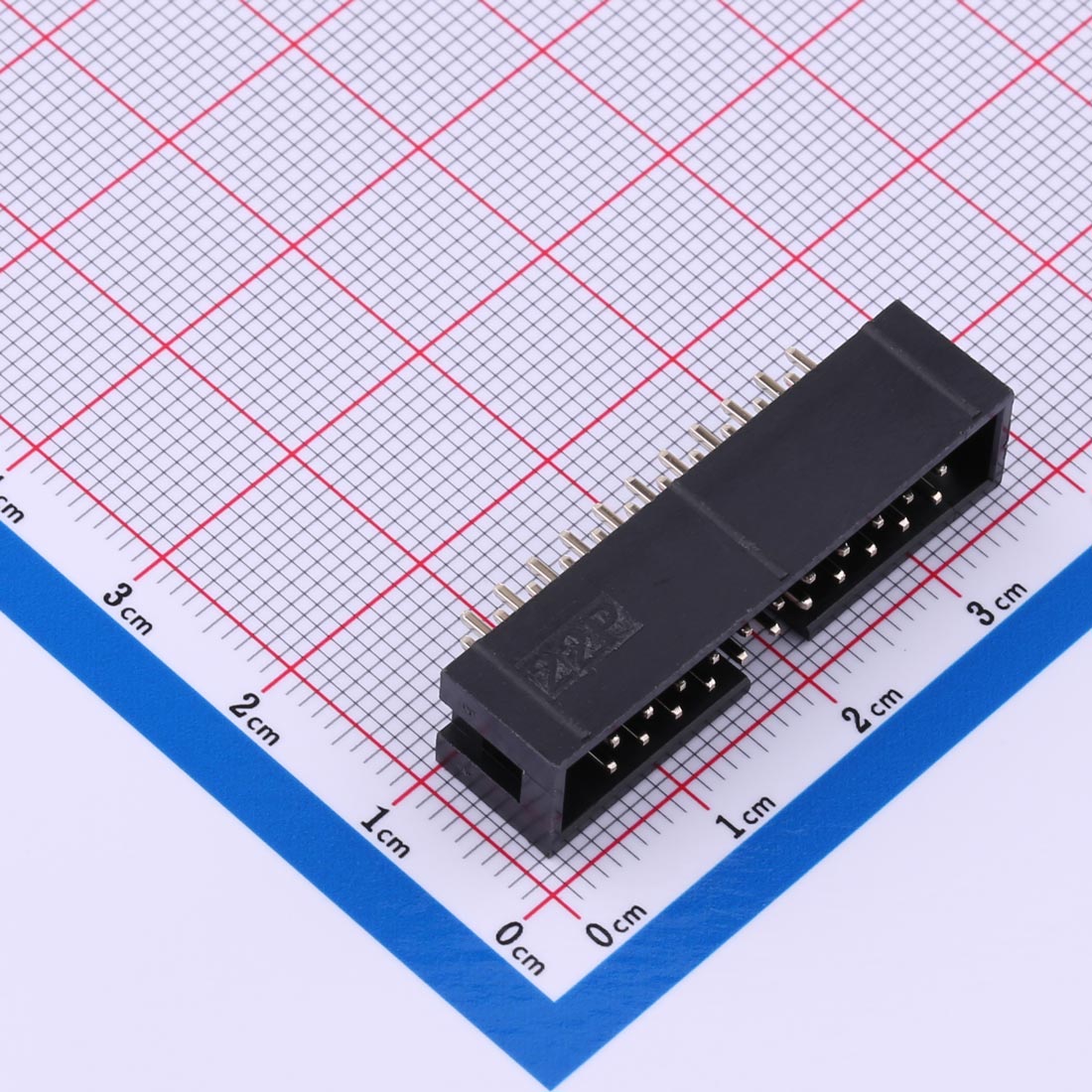

IDC Connector, 2.54mm Pitch, 11-Pin, 2-Row, KH-2.54PH180-2X11P-L8.9
Product Benefits● 2.54mm pitch, 2-row, 11-pin layout● Gold flash plating for consistent conductivity
Current Rating: 3A
Insulation Resistance: 5000 MΩ Min
Dielectric Withstanding Voltage: AC 500V
Operating Temperature: -40℃ to +105℃
Insulator Material: PBT
Contact Plating: Gold Flash
Product Benefits
● 2.54mm pitch, 2-row, 11-pin layout
● Gold flash plating for consistent conductivity
● PBT insulator for high durability and thermal resistance
● 180° straight insertion for easy PCB integration
● Operates within -40℃ to +105℃ temperature range
Product Application
● IDC cable-to-board connections
● Embedded electronics
● Industrial control systems
● Signal and power interfaces
● Communication devices
