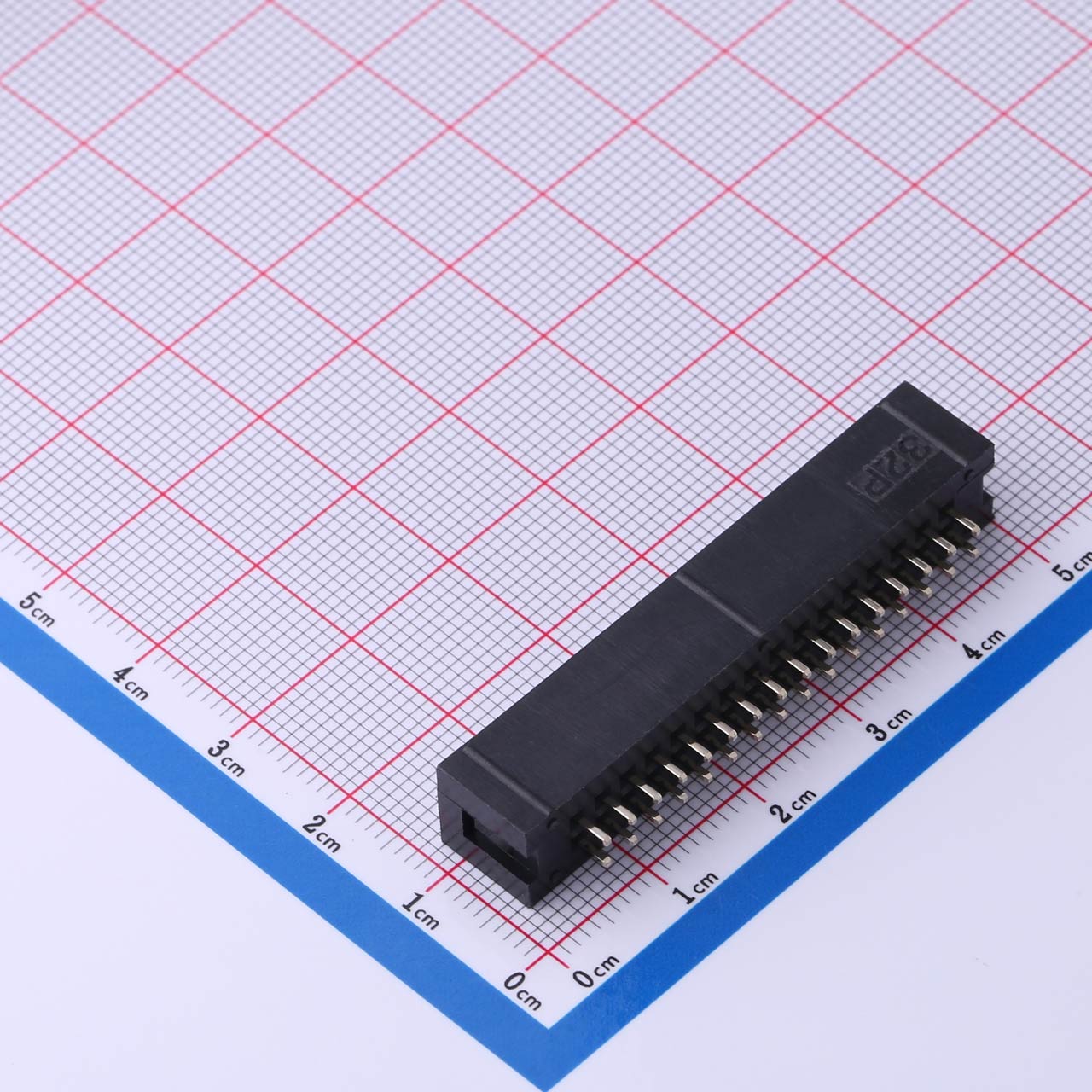

IDC Connector, 2.54mm Pitch, 16-Pin, 2-Row, KH-2.54PH180-2X16P-L8.9
Product Benefits● 2.54mm pitch with dual-row 16-pin layout● 180° straight insertion for easy PCB mou
Current Rating: 3A
Insulation Resistance: 5000 MΩ Min
Dielectric Withstanding Voltage: AC 500V
Operating Temperature: -40℃ to +105℃
Insulator Material: PBT
Contact Plating: Gold Flash
Product Benefits
● 2.54mm pitch with dual-row 16-pin layout
● 180° straight insertion for easy PCB mounting
● 8.9mm insulator height for stability
● Gold flash plating for reliable signal transmission
● Durable PBT material and high insulation resistance
Product Application
● IDC cable connections
● Industrial control equipment
● Consumer electronics
● Embedded systems
● Communication interfaces
