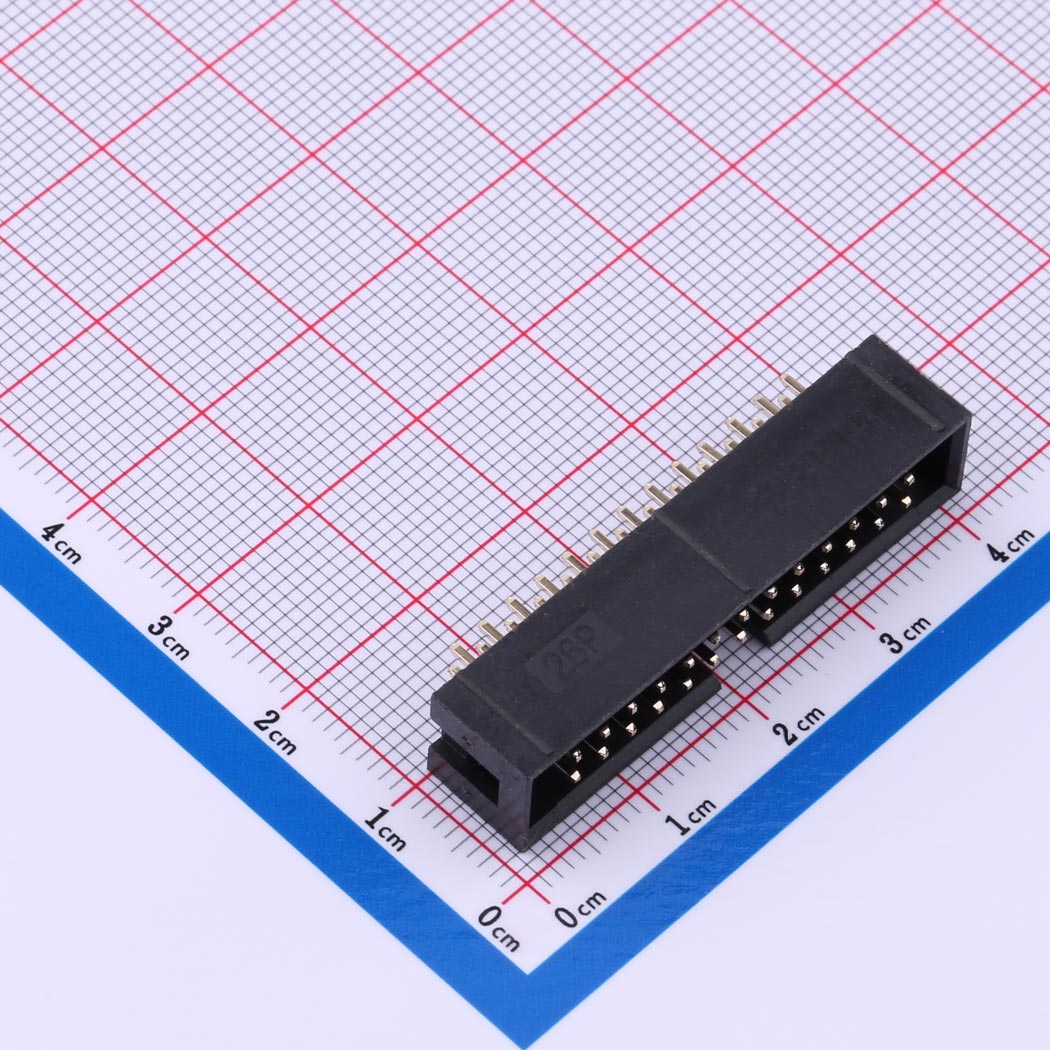

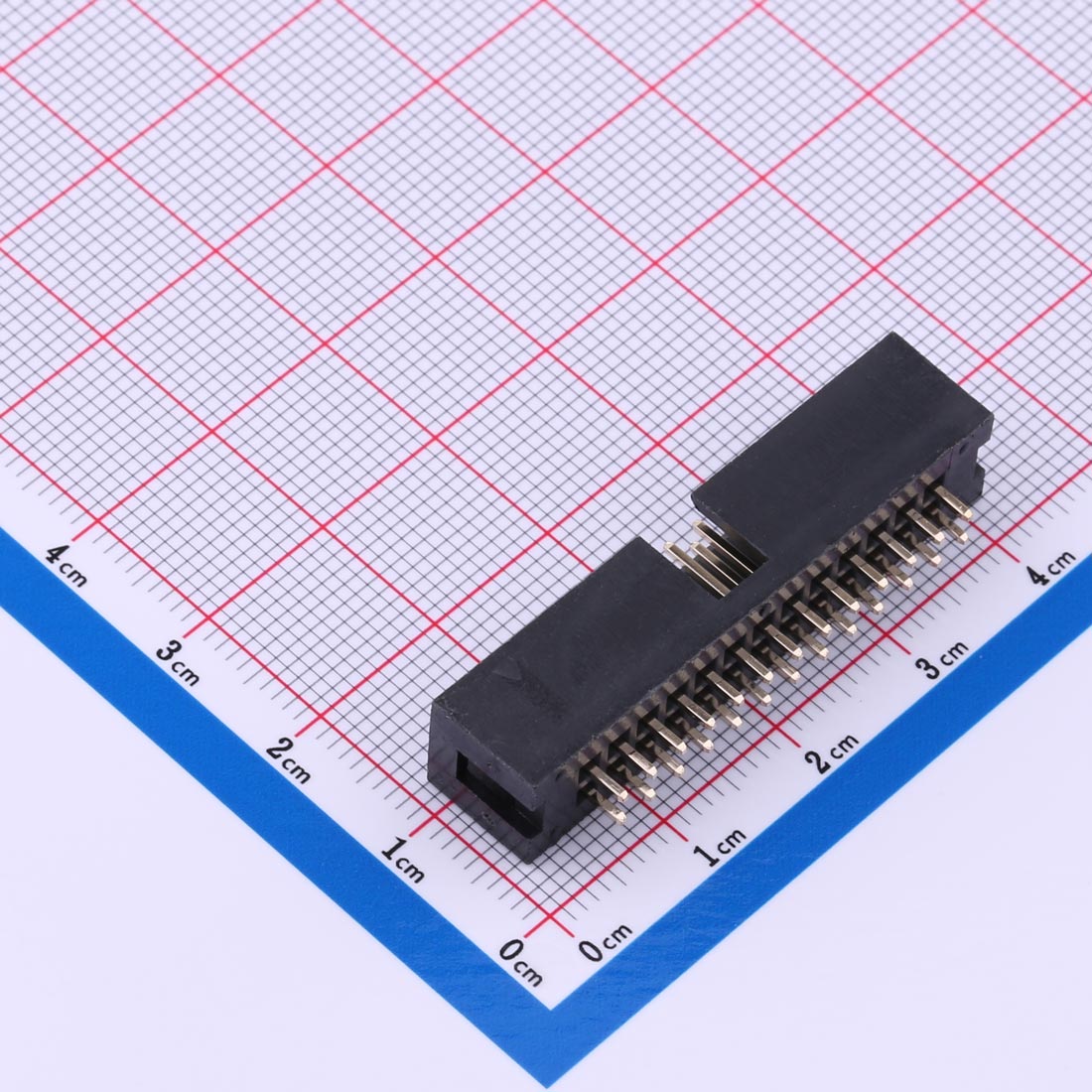

IDC Connector, 2.54mm Pitch, 13-Pin, 2-Row, KH-2.54PH180-2X13P-L8.9
Product Benefits● 2.54mm pitch with 2-row 13-pin configuration● 180° straight insertion for easy PCB
Current Rating: 3A
Insulation Resistance: 5000 MΩ Min
Dielectric Withstanding Voltage: AC 500V
Operating Temperature: -40℃ to +105℃
Insulator Material: PBT
Contact Plating: Gold Flash
Product Benefits
● 2.54mm pitch with 2-row 13-pin configuration
● 180° straight insertion for easy PCB mounting
● Gold flash plating for stable signal transmission
● Durable PBT material for high heat resistance
● Reliable performance across wide temperature range (-40℃ to +105℃)
Product Application
● IDC cable connections
● Industrial control and automation
● Consumer electronics
● Embedded systems
● Signal and data interfaces
Name
Title
Description
Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
