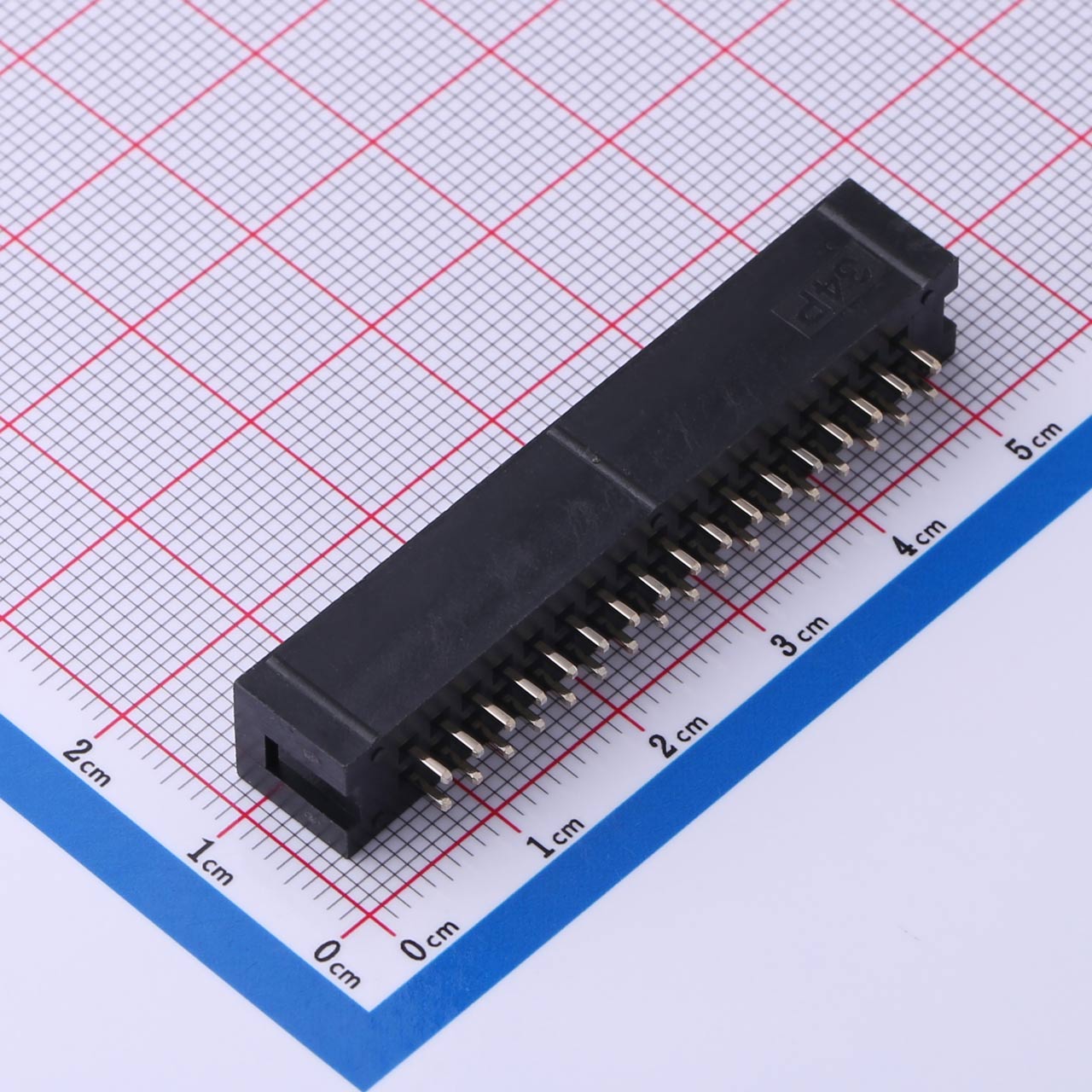

IDC Connector, 2.54mm Pitch, 17-Pin, 2-Row, KH-2.54PH180-2X17P-L8.9
Product Benefits● 2.54mm pitch with 2-row 17-pin layout● 180° straight insertion for PCB mounting● G
Current Rating: 3A
Insulation Resistance: 5000 MΩ Min
Dielectric Withstanding Voltage: AC 500V
Operating Temperature: -40℃ to +105℃
Insulator Material: PBT
Contact Plating: Gold Flash
Product Benefits
● 2.54mm pitch with 2-row 17-pin layout
● 180° straight insertion for PCB mounting
● Gold flash plating ensures stable conductivity
● High insulation resistance (5000 MΩ Min)
● PBT insulator for durability and heat resistance
Product Application
● IDC cable-to-board connections
● Industrial control systems
● Embedded and consumer electronics
● Signal and data transmission
● Communication devices
