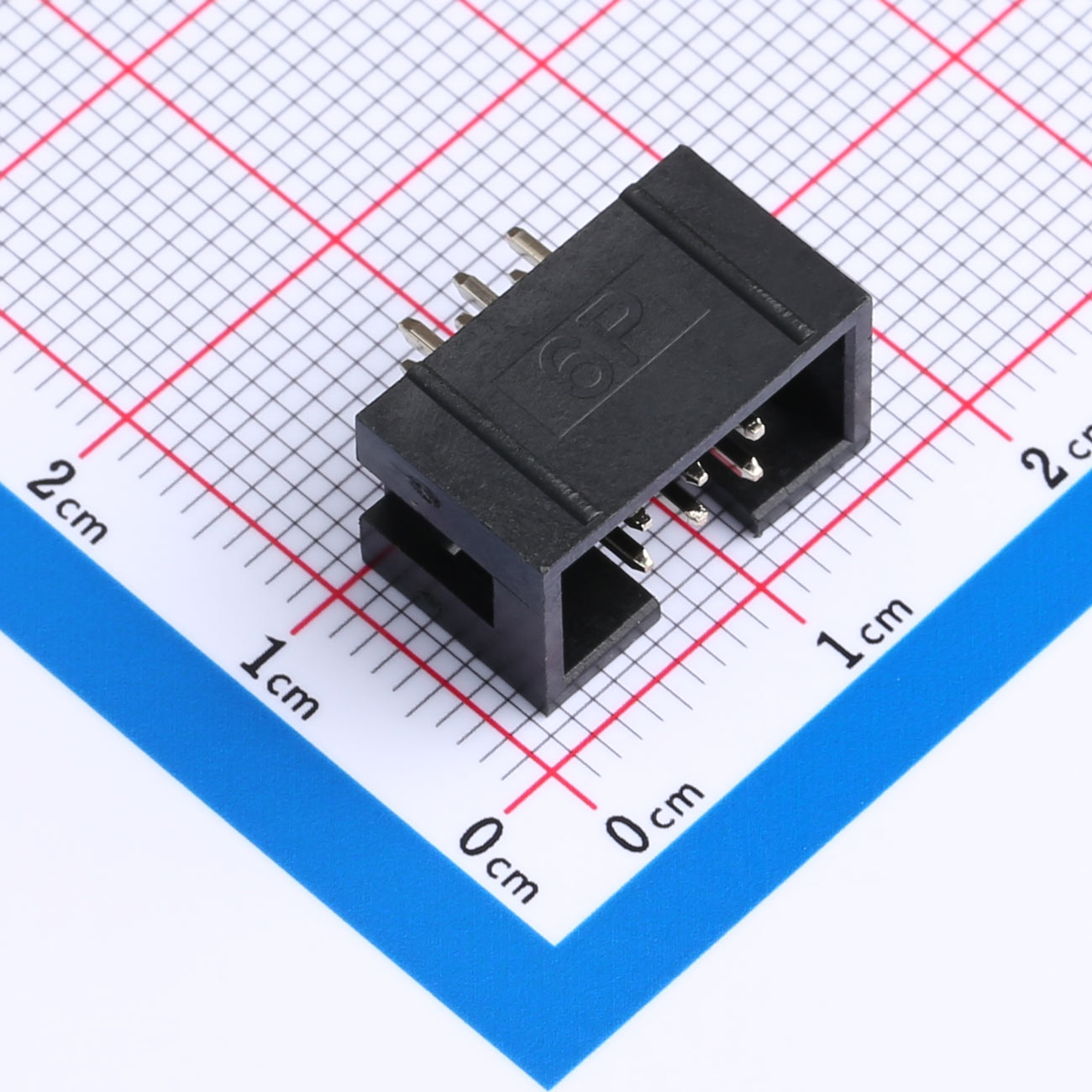

IDC Connector, 2.54mm Pitch, 3-Pin, 2-Row, KH-2.54PH180-2X3P-L8.9
Product Benefits● 2.54mm pitch with 2-row 3-pin layout● 180° straight insertion for easy PCB mountin
Current Rating: 3A
Insulation Resistance: 5000 MΩ Min
Dielectric Withstanding Voltage: AC 500V
Operating Temperature: -40℃ to +105℃
Insulator Material: PBT
Contact Plating: Gold Flash
Product Benefits
● 2.54mm pitch with 2-row 3-pin layout
● 180° straight insertion for easy PCB mounting
● Gold flash plating for stable conductivity
● High insulation resistance (5000 MΩ Min)
● Durable PBT insulator with wide temp range (-40℃ to +105℃)
Product Application
● Signal and power connectors
● Industrial automation
● Embedded systems
● Consumer electronics
● Data communication devices
