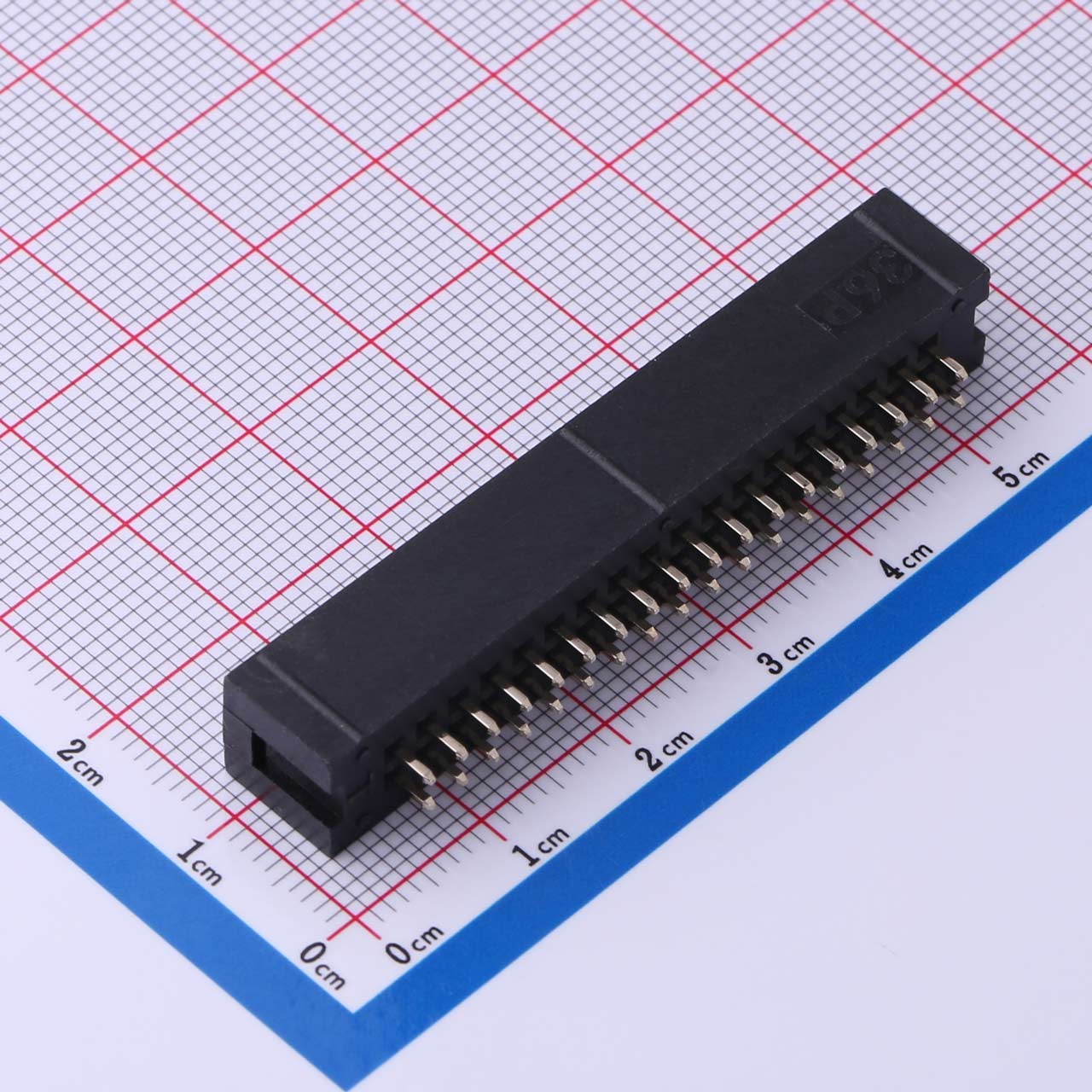

IDC Connector, 2.54mm Pitch, 18-Pin, 2-Row, KH-2.54PH180-2X18P-L8.9
Product Benefits● 2.54mm pitch with 2-row 18-pin layout● Gold flash plating for improved conductivit
Current Rating: 3A
Insulation Resistance: 5000 MΩ Min
Dielectric Withstanding Voltage: AC 500V
Operating Temperature: -40℃ to +105℃
Insulator Material: PBT
Contact Plating: Gold Flash
Product Benefits
● 2.54mm pitch with 2-row 18-pin layout
● Gold flash plating for improved conductivity
● High insulation resistance (5000 MΩ Min)
● Durable PBT housing for heat and wear resistance
● Wide operating temperature range (-40℃ to +105℃)
Product Application
● IDC cable-to-board connections
● Industrial control systems
● Consumer and embedded electronics
● Signal transmission interfaces
● Communication equipment
