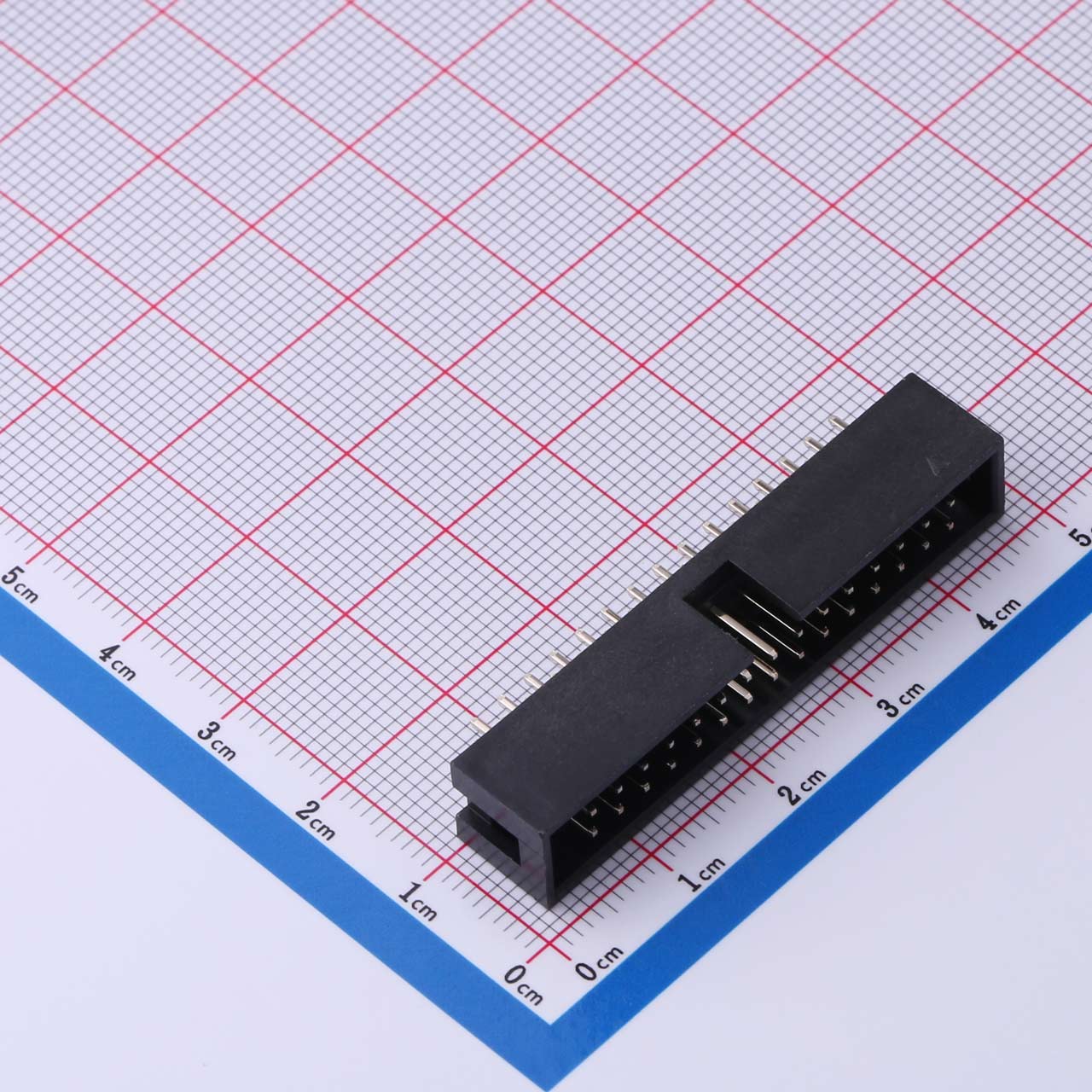

IDC Connector, 2.54mm Pitch, 15-Pin, 2-Row, KH-2.54PH180-2X15P-L8.9
Product Benefits● 2.54mm pitch, 2-row, 15-pin layout● Gold flash plating for long-lasting conductivi
Current Rating: 3A
Insulation Resistance: 5000 MΩ Min
Dielectric Withstanding Voltage: AC 500V
Operating Temperature: -40℃ to +105℃
Insulator Material: PBT
Contact Plating: Gold Flash
Product Benefits
● 2.54mm pitch, 2-row, 15-pin layout
● Gold flash plating for long-lasting conductivity
● PBT insulator for heat and wear resistance
● 180° straight insertion for easy installation
● Wide temperature range (-40℃ to +105℃)
Product Application
● IDC cable connections
● Embedded systems
● Industrial control systems
● Signal and power transmission
● Consumer electronics
Name
Title
Description
Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
