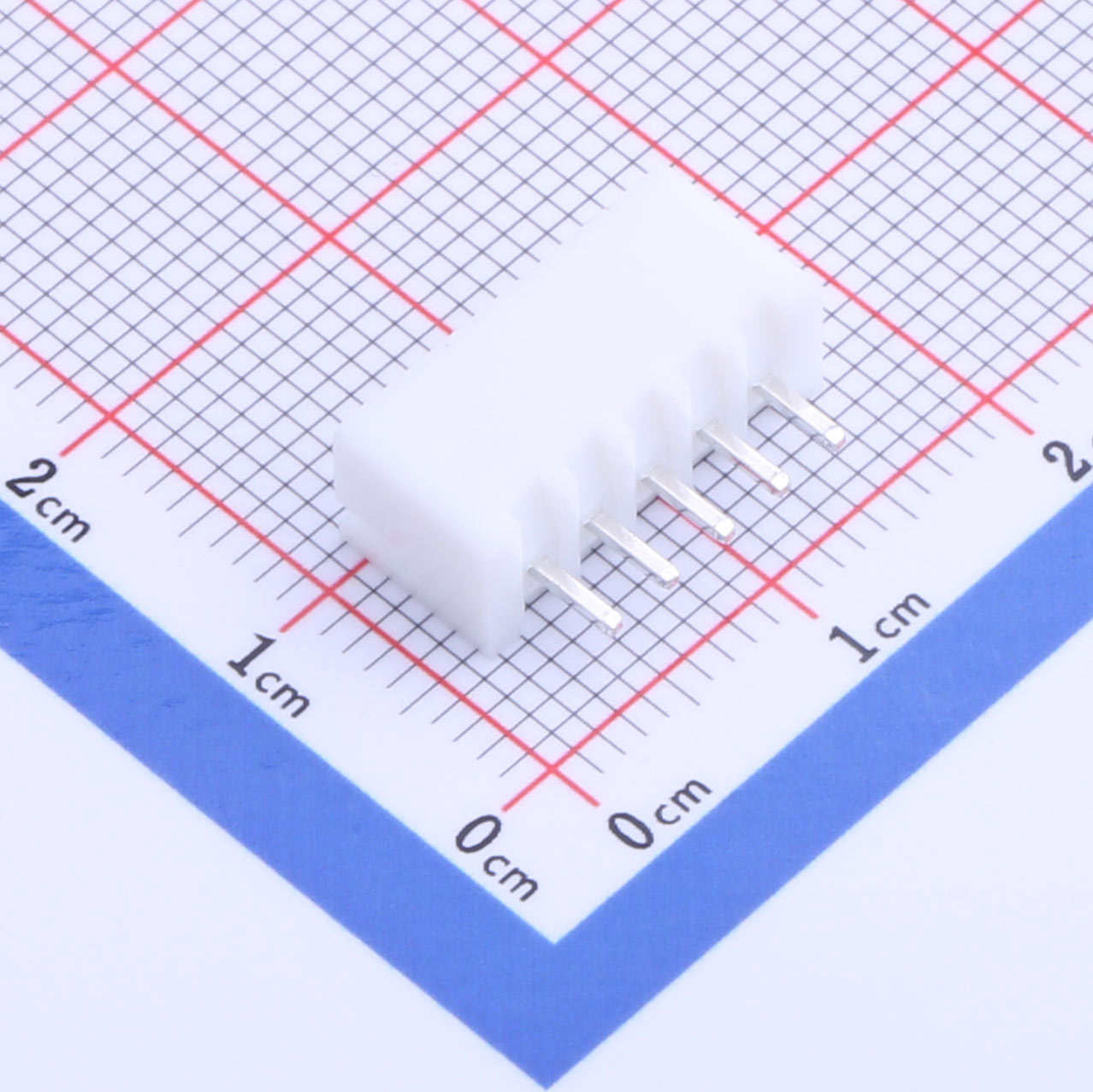

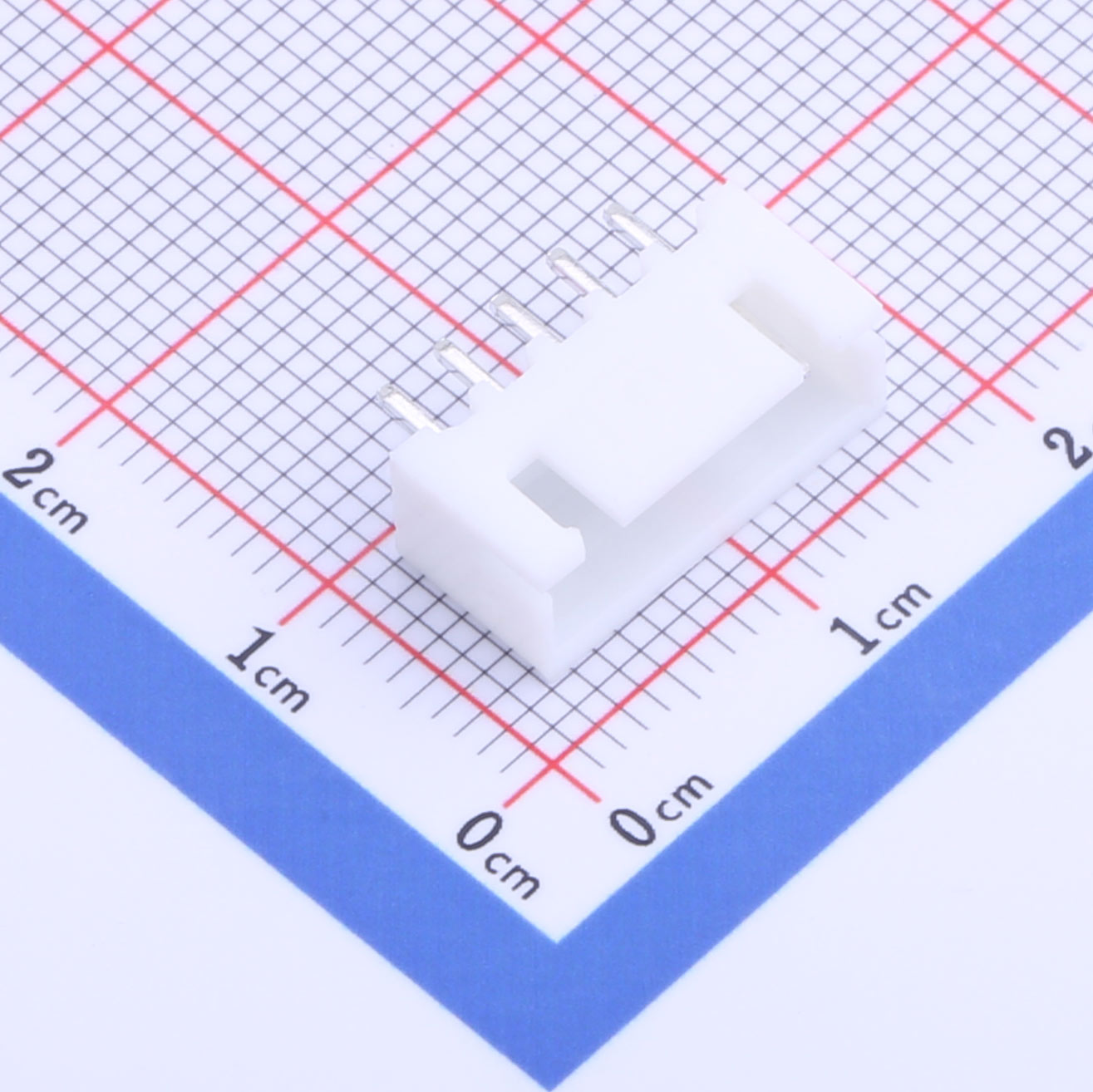

Wire to Board Connector, XH Connector, 2.5mm Pitch, 1x5P, KH-XH-5A-Z
Product Features● 2.5mm pitch, single-row 5-pin structure● Plug-in type connector● Compact and easy-
Current Rating: 3A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: -25℃ ~ +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min
Product Features
● 2.5mm pitch, single-row 5-pin structure
● Plug-in type connector
● Compact and easy-to-install design
● Reliable electrical contact
● Suitable for standard PCB mounting
● Durable housing for stable performance
Product Benefits
● Ensures secure and stable connections
● Easy to assemble and disassemble
● Saves PCB space with compact pitch
● High reliability in various applications
● Reduces assembly time and errors
Product Applications
● Consumer electronics
● Household appliances
● Industrial control equipment
● Communication devices
● LED lighting systems
● Office automation
Name
Title
Description
Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
